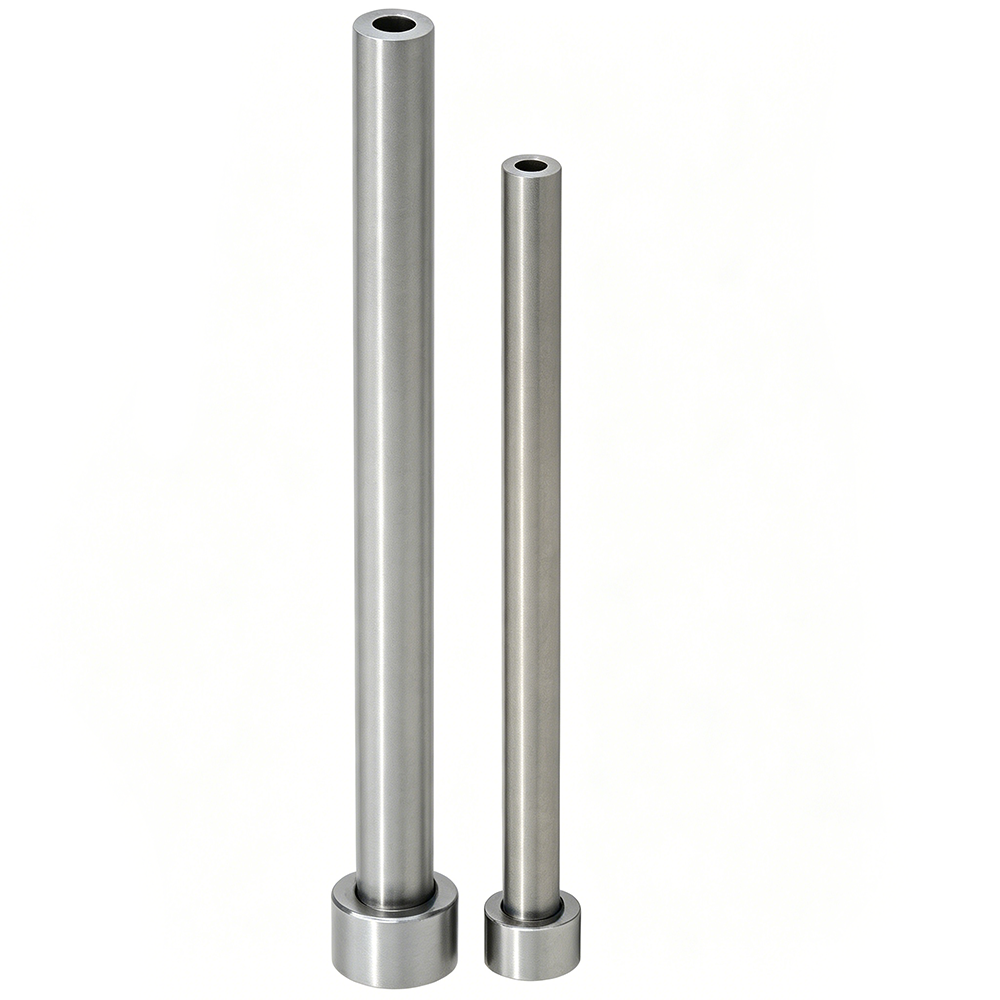

Straight Ejector Sleeves – SKD61, Nitrided, JIS Head, Concentricity 0.06, Configurable L, Selectable OD/ID
Straight ejector sleeves with JIS head, configurable length, selectable OD/ID. SKD61/H13, nitrided, concentricity 0.06mm.
Description
Product Overview
Straight ejector sleeves with JIS standard head thickness offering configurable length and selectable OD/ID dimensions. SKD61 (H13) steel with nitriding treatment for reliable mold performance.
Technical Specifications
| Material | SKD61 (1.2344 / H13) |
| Surface Treatment | Nitrided (900-1100 HV) |
| Head Thickness | JIS Standard (6mm / 8mm) |
| Concentricity | 0.06mm |
| Configuration | Configurable length, selectable OD and ID |
Our Manufacturing Capabilities
In-house machining30 CNC lathes (Okuma / Takisawa) and 6 machining centers for turned and milled precision components.
Grinding & honingCylindrical, internal and centerless grinding plus honing done in-house for tight diameters and surface finish.
On-site inspectionRoundness, roughness, Vickers hardness, force-curve, burst and fatigue testing before shipment.
Certified quality systemManufactured under ISO 9001:2015 and IATF 16949:2016; OEM drawings and brand equivalents welcome.
