Roller Guide Post Sets for Die Sets: Precision Alignment Solutions

Our Roller Guide Post Sets are engineered for high-speed stamping and ultra-precision molds. Unlike traditional ball cages, the roller needle design provides a larger contact surface, significantly increasing rigidity and mold service life.

Precision Grade
Class 1 (0.002mm)
Repeatability accuracy
Surface Hardness
HRC 58-62
Induction Hardened SUJ2

Best For Industrial Applications:

Motor core dies • Lead frames • High-speed punching • Precision connector molds
Need a Quick Quote or CAD Drawing?
✓ Response within 2 hours during business hours.

Description

Roller Guide Post Sets – Size Specifications

DPostBushing
D1D2LAHH1H2(HP)TMProvided boltUtSS1BDBL(HS)Number of grooves
69965—3.44.72.5M3× 6CB3× 62.8———130257.73
9141496—4.27.93.5M4× 8CB4× 83.5———17-0.0053010.93
13191712735.511.25M5× 8CB5×102.5———2304015.23
162422161046.514.66M6×10CB6×104.31.2111430-0.0064018.63
202928161478.518.88M8×20CB8×1531.620233706022.84
253535181478.523.88M8×20CB8×153.51.625284507027.84
2837362016810.526.68M10×20CB10×203.51.6273047-0.0077531.64
3242402316810.531.210M10×25CB10×2041.628315507836.24
4054503518912.539.110M12×30CB12×254233366809245.15
5064603518912.548.912M12×30CB12×2552353880-0.0089654.95
60747242201214.559.115M14×30CB14×3052515495012067.16
809810545261317.579.415M16×35CB16×405.5——62120-0.0114587.46

Precision Roller Guide Post Sets Manufacturer

As a leading China factory supplier, GUNRI provides high-precision roller guide post sets for die sets. Designed for ultra-high precision linear motion, our roller needle systems offer 10x more rigidity than traditional ball cages—ideal for wholesale procurement and custom mold components.Precision stamping die components wholesale

Technical Specifications

ParameterDetails
MaterialSUJ2 / GCr15 High Carbon Chrome Bearing Steel
HardnessHRC 58 – 62 (Induction Hardened)
Precision GradeRepeatability within 0.002mm (Class 1)
CompatibilityInterchangeable with / HASCO / PUNCH standards

Why Choose Roller Needle Design?

High Rigidity & Stability:
The linear contact of roller needles distributes pressure evenly, offering 10 times the rigidity of point-contact steel balls.
Low Vibration & Noise:
Non-recirculating design minimizes impact during high-speed insertion, essential for long-life die sets.

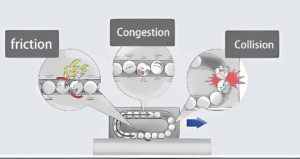

Steel ball type vs roller guide post comparison

Ball Type (Point Contact)

Roller guide post sets high rigidity design

Roller Type (Line Contact)

Custom roller guide pillar and bush assembly

Industrial Applications

  • Motor Core Stamping Dies: Ensures uniform clearance, reducing chipping and extending resharpening cycles for high-volume production.
  • Card & Lead Frame Punching: Achieves burr-free high-quality edges with extreme reproducibility.
  • High-Speed Progressive Dies: Maintains stability under high SPM (Strokes Per Minute).

FAQ – Roller Guide Post Units

Q: Are your roller guide sets interchangeable with ?
A: Yes, our components are 100% interchangeable with , HASCO, and PUNCH standard specifications, ensuring easy maintenance for global clients.

Q: Can you provide customized sizes for special die sets?
A: Absolutely. As a direct manufacturer, we offer custom roller guide posts based on your CAD drawings (PDF, STEP, or DWG).

Q: What is the delivery time for wholesale orders?
A: Standard sizes are in stock for 24-hour shipping. Custom industrial components typically ship within 7-12 working days.

Get a Factory Quote Today

Send us your requirements for a quick response within 2 hours.

Email: Milla@gunri.com.cn

WhatsApp/WeChat: +86 13790201541

Roller Guide Post Set Dimensions and Stop Collar Options

Use this reference table to shortlist a configuration for a new die or compare an existing assembly. RMBL has no stop collar, RMSL has a movable stop collar, and RMKL has a fixed stop collar.

Catalog reference dimensions in mm. Confirm the final configuration against an approved drawing.
ReferencePost DPost LSleeve OD DSSleeve length LSRetainer length LLThread MStopper SDStopper S
RMBL1350, 60, 70243025M6×15——
RMBL1650, 60, 80304030M6×15——
RMSL2090, 100, 120375040M8×182417
RMSL25100, 120, 130446151M8×182921
RMKL2895, 120, 140, 160476757M10×223321
RMKL32120, 140, 160547363M10×223728
RMKL38140, 160, 180647866M12×274425

Example: a D20 RMSL reference uses a movable stop collar, a 37 mm sleeve OD and a 50 mm sleeve length. Available catalog post lengths are 90, 100 and 120 mm. Dimension L is a post dimension. Specify the required working stroke separately.

The catalog lists SUJ2 for the guide post and sleeve, S45C for the base cap, and SWP-B for the spring. Confirm material, hardness and inspection requirements on the order drawing.

What to measure before ordering a replacement

  • Guide post mounting diameter, shoulder location and fastening thread.
  • Sleeve outside diameter, seating depth and mounting method.
  • Stop collar type and dimensions, die opening and closed height, and required working stroke.
  • Whether you need a matched assembly or a single component to fit an existing assembly.

Send the original part number or a marked-up drawing. We’ll compare the interfaces and confirm the proposed configuration before quoting.

Our Manufacturing Capabilities

In-house machining30 CNC lathes (Okuma / Takisawa) and 6 machining centers for turned and milled precision components.
Grinding & honingCylindrical, internal and centerless grinding plus honing done in-house for tight diameters and surface finish.
On-site inspectionRoundness, roughness, Vickers hardness, force-curve, burst and fatigue testing before shipment.
Certified quality systemManufactured under ISO 9001:2015 and IATF 16949:2016; OEM drawings and brand equivalents welcome.
