Custom Ball Cages & Non-Standard Guide Bushings
Are you looking for a highly capable Chinese manufacturing partner to source non-standard ball cages or custom guide post bushings? At GUNRI, we do not limit our clients to restrictive off-the-shelf catalogs. We specialize in custom-engineered ball retainers tailored strictly to your unique industrial applications. Whether you need an interchangeable die set component to replace expensive legacy brands, or a custom-density micro sleeve for complex automation, our precision machining facility brings your CAD files to life.
Submit Blueprint (STEP/PDF) for a Custom Quote1. 100% Made-to-Drawing Manufacturing Flexibility
Modern progressive stamping dies and injection molds often demand non-standard linear motion components to withstand high stroke frequencies and extreme loads. Standard supplier catalogs often force you to compromise on wall thickness, overall length, or ball spacing. GUNRI eliminates these limitations by offering direct-from-blueprint manufacturing for all types of bespoke guide bearing sleeves.
- Seamless Brand Alternatives: Our non-standard ball cages are fully interchangeable with market standards such as Agathon ball cages, MISUMI standard components, and FIBRO guide post bushings, offering identical precision at a fraction of the cost.
- Tailored Ball Pattern Configurations: From staggered rows for maximum rigidity to custom hole pattern layouts that match specific mechanical strokes.
- No Minimum Order Constraints: We support global engineering teams with rapid prototyping for small-batch custom runs as well as high-volume OEM manufacturing.
2. Material Versatility & Advanced Alterations Matrix
Different operating environments required tailored tribological solutions. By controlling the entire manufacturing process in our China factory, we can alter the matrix material, steel ball spacing, and outer geometric design to perfectly match your radial loads and linear speeds.
| Technical Alteration Option | Manufacturing Range & Material Specification |
|---|---|
| Base Material Selection | High-tensile Brass/Bronze (with optional solid lubricant graphite plugs), Lightweight Aerospace Aluminum, and Self-lubricating Low-friction POM Resin. |

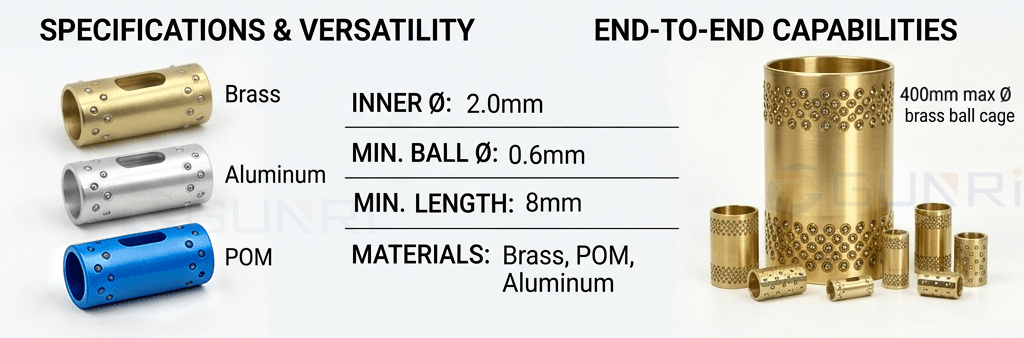

| Miniature Ball Cage Limits | Inner Diameter (ID) down to 2.0mm | Minimum Steel Ball Diameter 0.6mm | Minimum overall length 8mm. |
| Heavy-Duty Giant Cages | Massive scale capability reaching up to 400mm maximum diameter brass ball cages for heavy industrial stamping presses. |
| Custom Geometries | Special integrated window slots (slotted ball sleeves), specialized oil grooves, multi-segmented ball arrangements, and selective ball placement. |
3. Micro-Engineering Excellence: Overcoming Compact Space Constraints
When engineering medical devices, high-tech semiconductor handlers, or micro-electronics molds, every tenth of a millimeter matters. Standard linear bearings are often too bulky and heavy, generating excessive inertia and friction. GUNRI thrives in the micro-domain, crafting sub-millimeter precision components where standard manufacturers simply cannot compete.

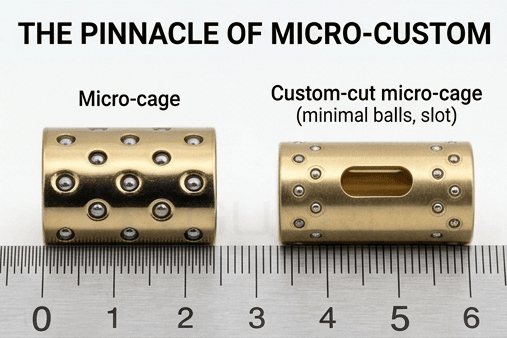

Our specialized custom-cut micro-cages utilize a minimalist ball arrangement combined with a precision-machined window slot. This reduces the total surface area and weight of the sleeve, drastically cutting down the starting coefficient of friction while maintaining absolute linear and rotary guidance accuracy.

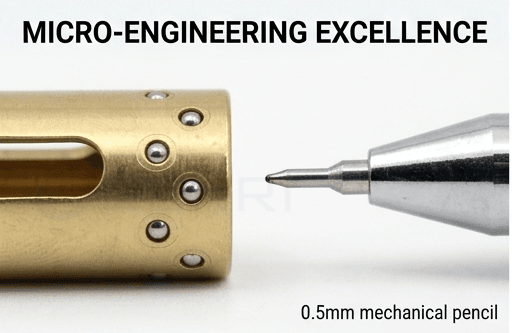

- Micro Mechanical Reference: Handled under strict temperature controls, our micro cages align with sub-millimeter tolerances – comparable to the precision of a 0.5mm mechanical pencil tip.
- Secured Ball Retention: Every individual micro bearing ball is locked permanently into its socket using proprietary staking techniques, ensuring zero ball fallout during high-speed reciprocating cycles.
4. Technical FAQ: Non-Standard Ball Guide Bushings
Have technical questions about specifying non-standard mold accessories? Here are the most common inquiries from our global engineering clients:
5. Custom Ball Cage Manufacturing Cases

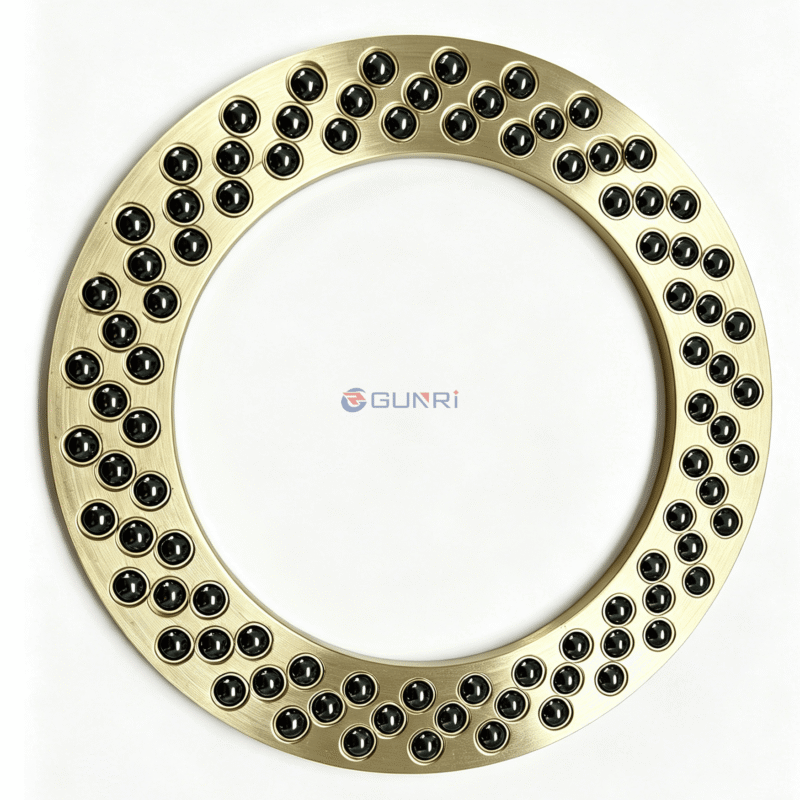

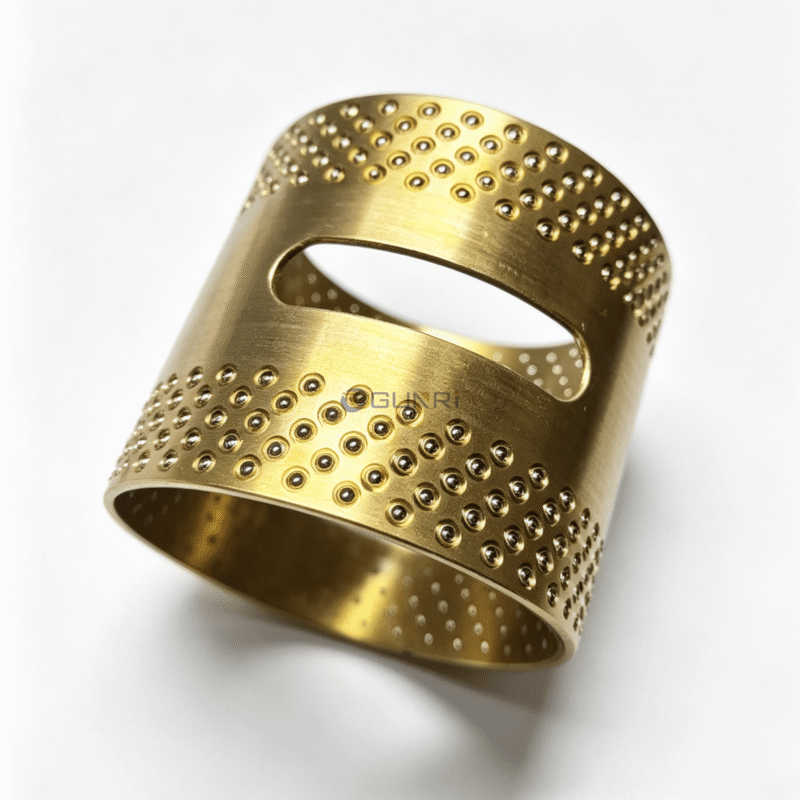

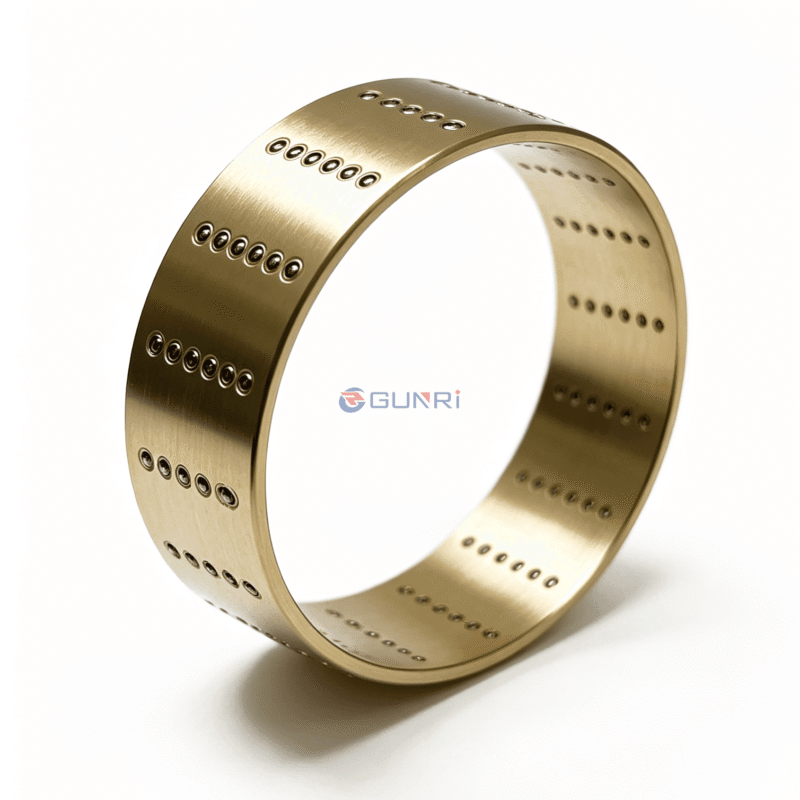

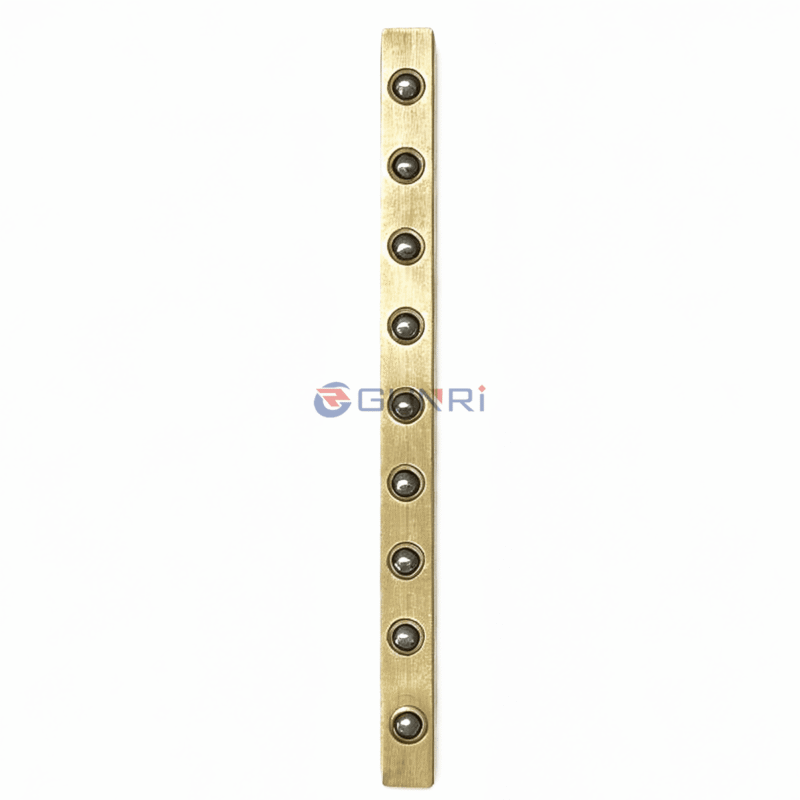

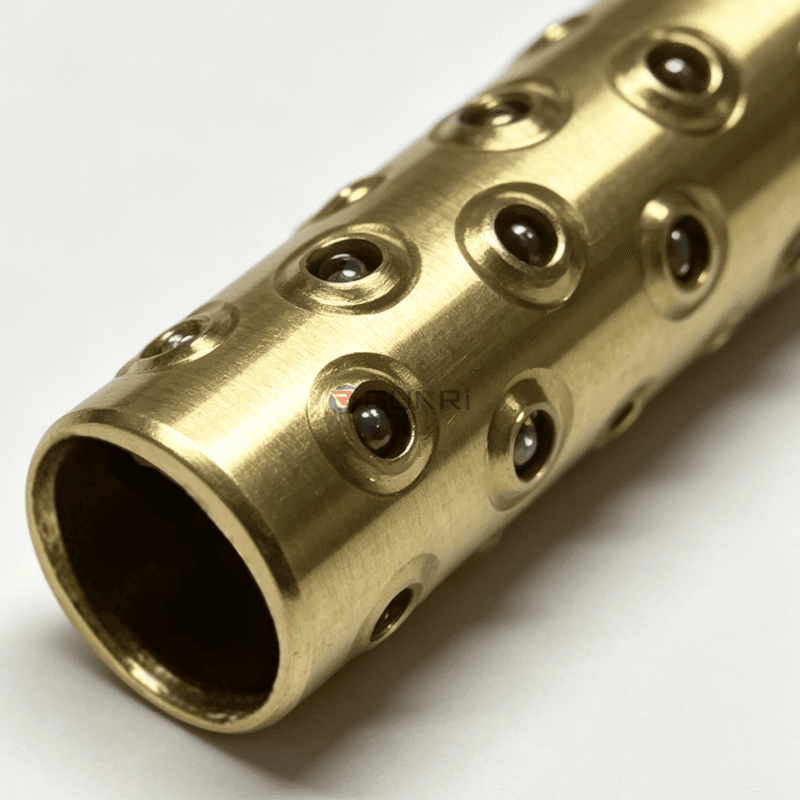

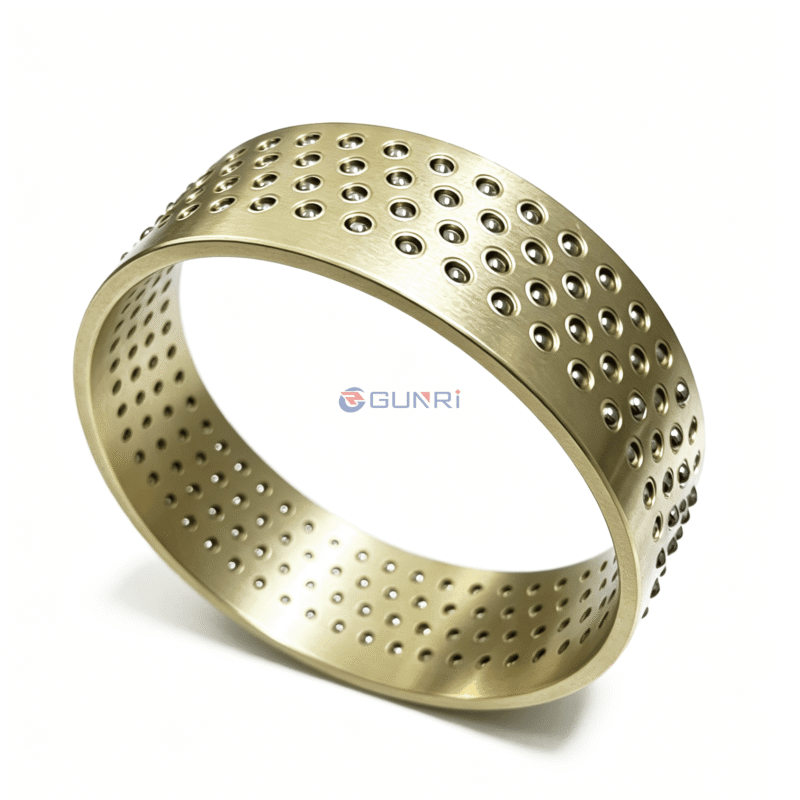

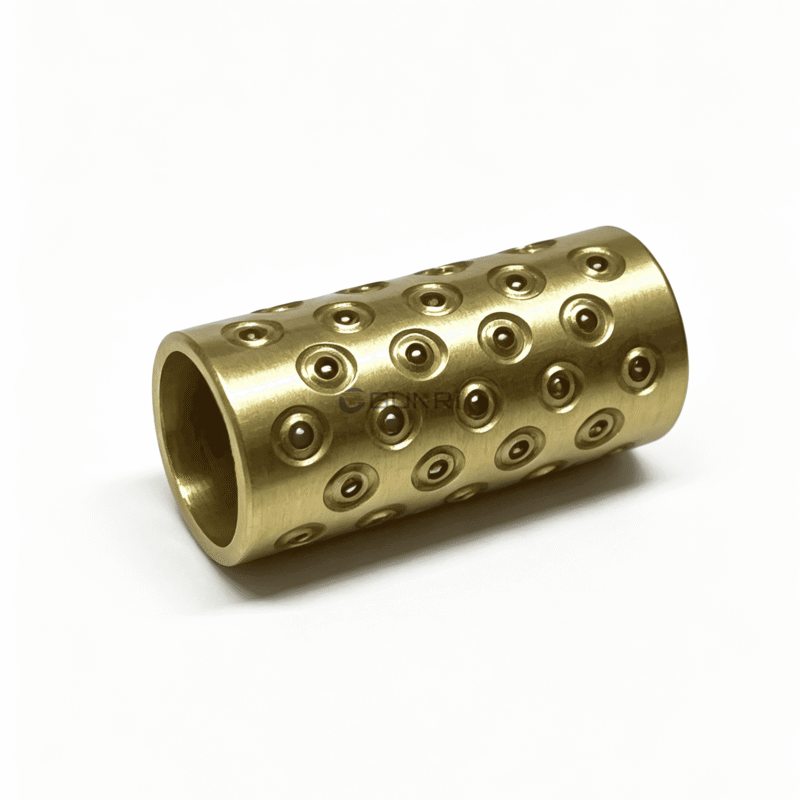

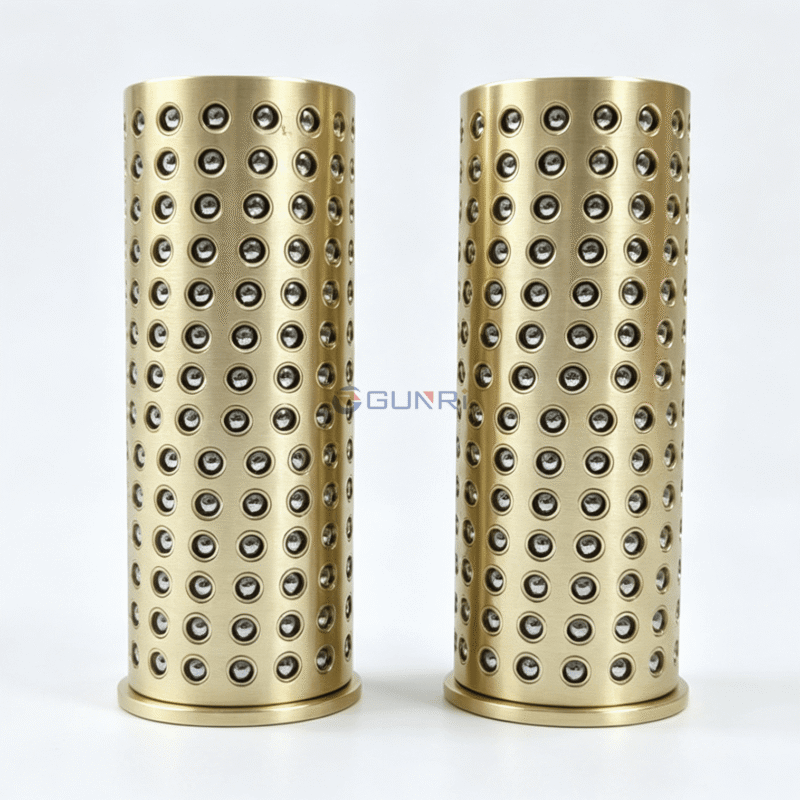

Below are real manufacturing examples from our precision workshop. Each case represents a unique customer requirement — from stepped recess designs to dense matrix configurations. Click the Learn More link for a detailed discussion of each type’s applicable scenarios, material choices, and performance comparisons.
We Also Offer Standard Ball Cages
Beyond custom fabrication, GUNRI also stocks a full range of off-the-shelf ball cages for standard press die guide post assemblies. Browse our standard ball cage product line →.
Why Source from GUNRI Precision Components?
Direct China Factory Pricing
Bypass expensive localized trading companies. Work directly with our production engineers in China to streamline costs on complex, non-standard mold accessories.
100% Quality Assurance
We utilize coordinate measuring machines (CMM) to double-check inner diameters, wall concentricity, and individual ball seat reliability prior to global dispatch.
Rapid Worldwide Logistics
Whether you are located in North America, Europe, or Southeast Asia, we ship your custom press die components via DHL, FedEx, or TNT.
Get an Expert Technical Evaluation Within 24 Hours
Don’t let off-the-shelf component limitations restrict your engineering team’s innovation. Send your custom specifications, material requirements, or drawing files straight to our manufacturing team.
Direct Factory Email: milla@gunri.com.cn
Request a Non-Standard Component Quote
