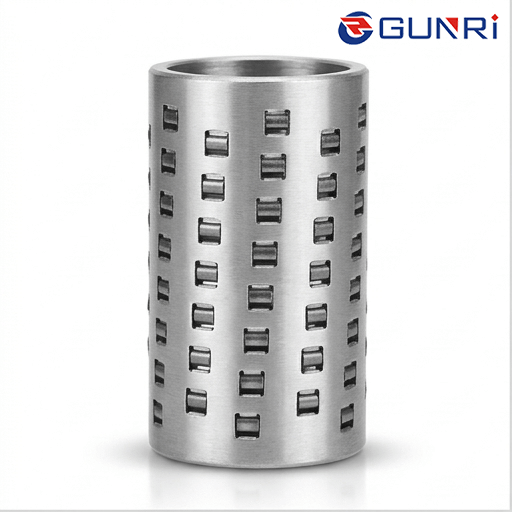

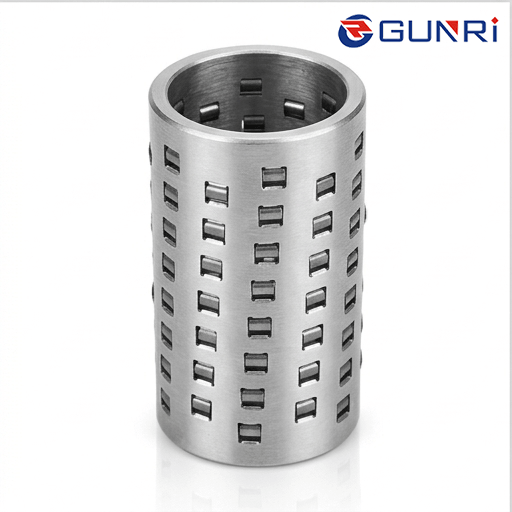

High-Precision Preloaded Needle Roller Guide Sleeve
Upgrade your high-speed stamping die with GUNRI’s line-contact needle roller guide sleeve. Engineered for 500+ SPM stability, this backlash-free, non-rotating guide unit is a 100% drop-in replacement for standard ball cages, eliminating cold welding and cage migration without re-machining.
Description
Engineered for 500+ SPM High-Speed Stability
The GUNRI Preloaded Needle Roller Guide Sleeve is designed to overcome the physical limitations of traditional ball bearings in precision stamping. By utilizing advanced Line Contact technology, it provides superior rigidity and thermal stability compared to point-contact ball cages.
Key Features & Benefits
- Line Contact Technology: Optimized R-profile matching between sleeve and pillar distributes loads across a larger surface area, significantly reducing deflection.
- High-Speed Reliability: Stable operation at 400-500 SPM with minimal heat buildup, preventing cold welding and seizure.
- Non-Rotating Design: Unlike ball units, the profile roller cage remains stable in high-frequency reversal, eliminating cage migration.
- Drop-In Replacement: Designed to fit standard die set envelopes. Upgrade your existing tooling from ball cages to roller guides without re-machining or design changes.
Applications
Ideal for high-precision, high-cadence industries including connector manufacturing, lead frame stamping, medical components, and lithium-ion battery die sets.
Technical Specifications
- Material: High-grade alloy steel / Bearing steel
- Contact Type: Precision Needle Roller (Line Contact)
- Motion: Linear, Non-rotating
- Compatibility: Fully interchangeable with standard Tier-1 European and American guide systems.
