Shaft Supports & Shaft Holders – Precision Linear Shaft Mounts
Precision shaft supports and shaft holders for linear guide shafts. Standard and compact types, open and closed designs. Cast iron and aluminium construction. Suitable for shaft diameters 6–50 mm. Compatible with MISUMI standard series.
Description
Product Description

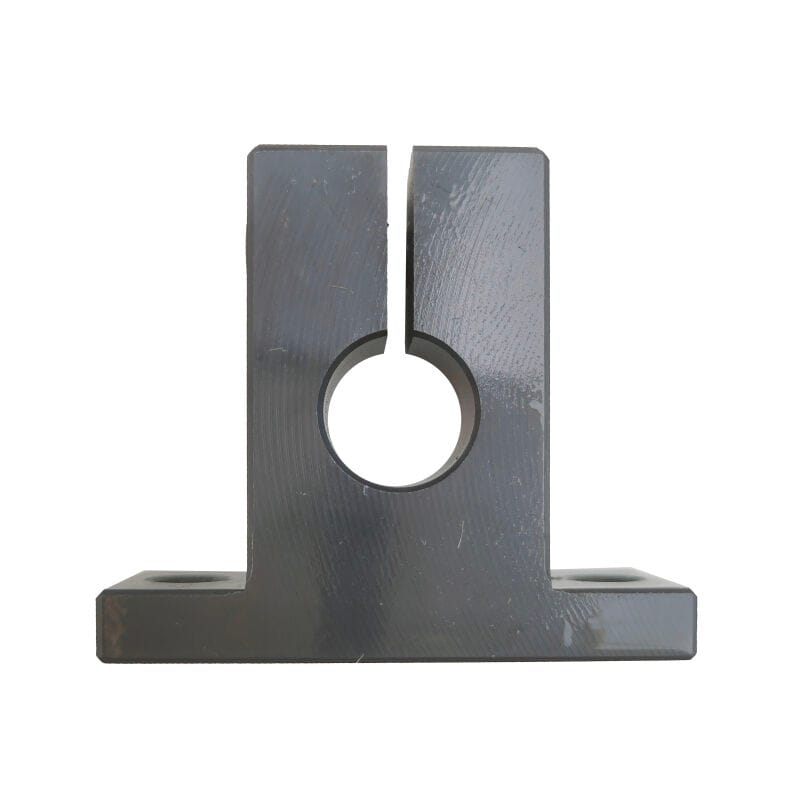

Shaft supports (also called shaft holders or shaft mounting blocks) are precision components used to secure and position linear guide shafts in automation equipment, jigs, and machinery. They provide stable shaft fixation with easy installation and adjustment.
Available Types
- Standard Shaft Support (Open Type) — For nominal shaft diameters 6–50 mm. Cast iron or aluminium body with clamp bolts. Suitable for general automation.
- Compact Shaft Support — Reduced height and footprint for space-constrained applications.
- Closed Type Shaft Support — Enclosed design for maximum rigidity, used in precision positioning stages.
- Shaft Support Rail — Continuous rail-type support for long-stroke applications with multiple carriages.
Features
- Precision-machined mounting surface ensures accurate shaft positioning
- Clamp bolt design allows quick installation and repositioning
- Compatible with standard linear shafts (g6/h6 tolerance)
- Available in cast iron (FC250) and aluminium alloy (A6063)
- Black oxide or electroless nickel finish for corrosion resistance
Compatible Series
- MISUMI standard shaft support series
- Equivalent to THK, HIWIN, TBI, CPC and other linear guide brands
- Custom bore diameter and mounting hole patterns available
Applications
- Pick-and-place units and linear transfer systems
- Packaging machine guide shafts
- Assembly jigs and fixtures
- Slide table guides
- Laboratory and testing equipment
