Plastic Spur Gears – POM & MC Nylon, Module 0.5 to 3
Plastic spur gears POM and MC Nylon, module 0.5 to 3, 20° pressure angle. Lightweight, quiet, no lubrication needed. Ideal for food, medical, and light automation. Custom bore.
Description
Plastic spur gears are lightweight, quiet, and run without lubrication — making them a popular choice for food processing equipment, packaging machinery, printers, medical devices, and light-duty automation.
Available in modules 0.5 to 3, 20° pressure angle, in two materials:

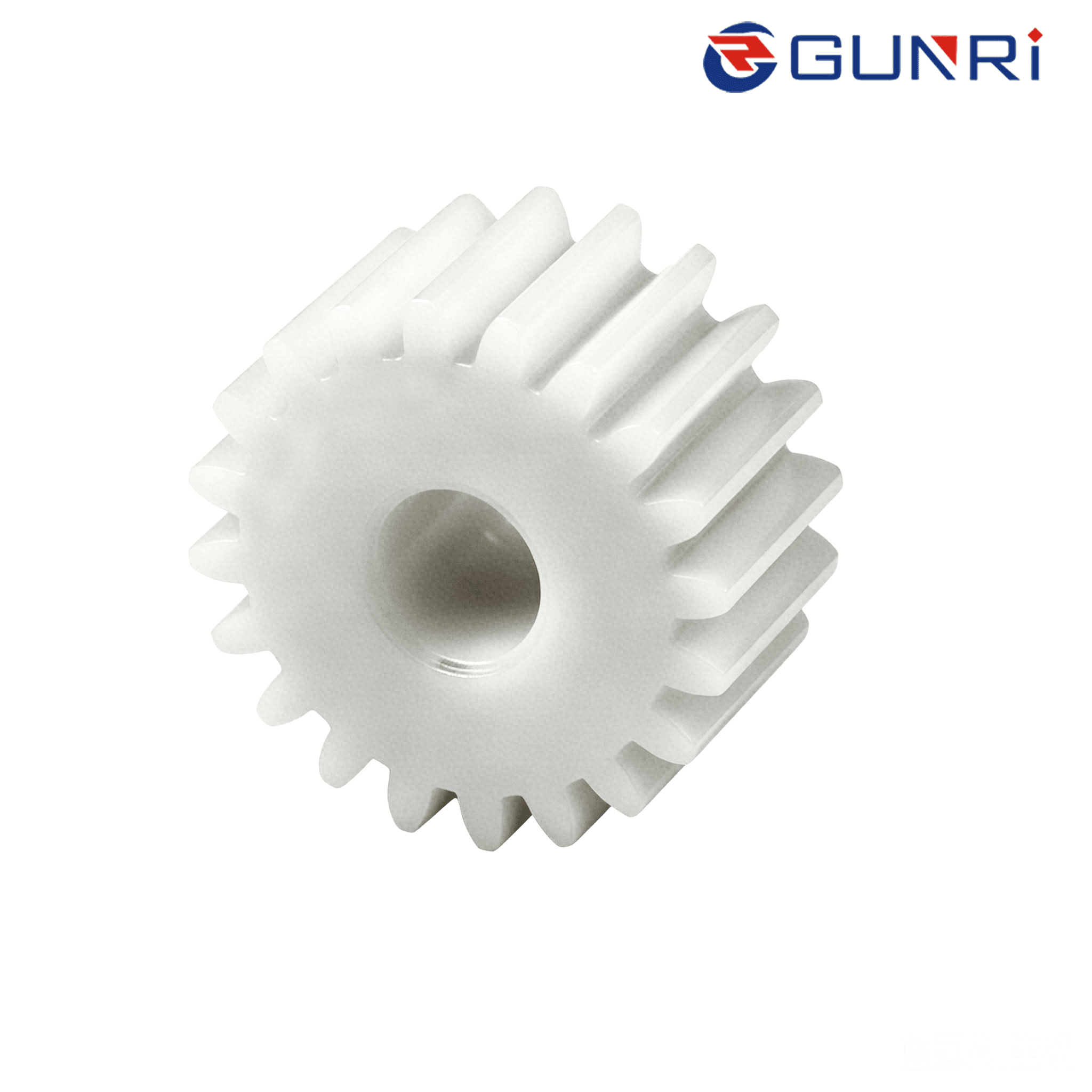

- POM (Polyacetal / Delrin®) — Low friction, high wear resistance, good dimensional stability. Best for general-purpose plastic gear applications.
- MC Nylon (Cast Nylon / MC901) — Higher strength and impact resistance than POM. Suitable for heavier loads and higher operating temperatures.
Standard configurations include straight bore and bore+tap. Plastic gears are typically paired with steel or stainless steel mating gears for optimal wear characteristics.
Custom bore diameters and tooth counts available. No minimum order quantity.
Specifications
| Module Range | 0.5, 0.8, 1, 1.5, 2, 2.5, 3 |
|---|---|
| Pressure Angle | 20° |
| Materials | POM (Polyacetal), MC Nylon (MC901) |
| Surface Treatment | None (as-machined) |
| Bore Configurations | Straight bore, Bore+tap |
| Operating Temperature | POM: -40 to 100°C / MC Nylon: -40 to 120°C |
Features
- Compared to nylon gears, POM (polyacetal) has lower water absorption, superior machinability, and excellent dimensional stability.
- Also available with pre-tapped 2-hole thread for immediate installation.
- Models with * have two threaded holes (120° apart) with 2 set screws.
- Accuracy grade: JIS B 1702-1 (ISO) class 9–10.
Applications
- White POM complies with food hygiene regulations, ideal for food industry and packaging industry.
