Gear Racks – Module 0.5 to 3, Custom Length
Gear racks module 0.5 to 3, 20° pressure angle. 1045 carbon steel and 304 stainless steel. Custom lengths, mounting holes, and surface treatment. Made to order.
Description

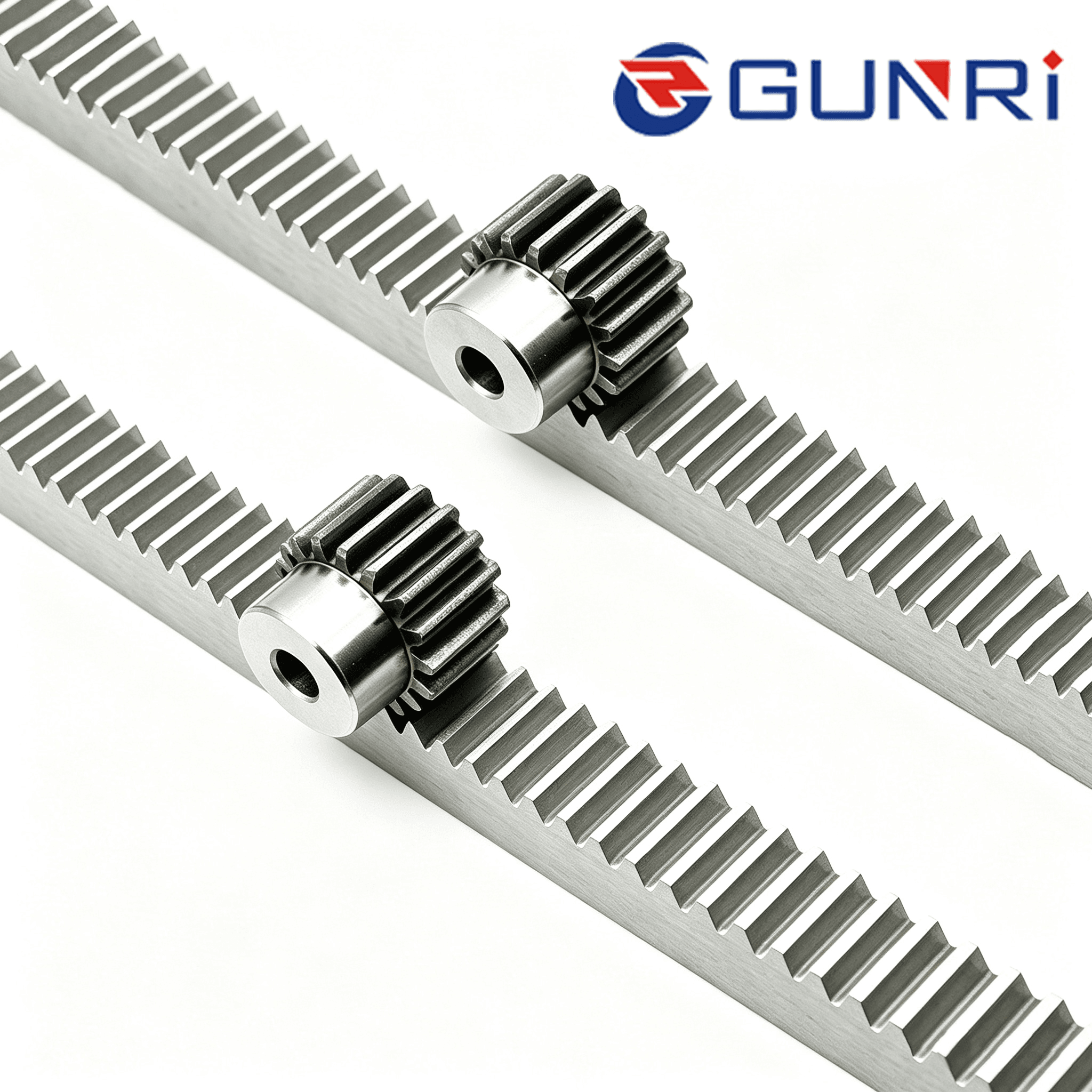

Gear racks (linear racks) convert rotary motion into linear motion when paired with a spur gear pinion. Commonly used in CNC machines, automation gantries, machine tool feeds, and material handling systems.
Available in modules 0.5 to 3, in 1045 carbon steel and 304 stainless steel. Standard pressure angle 20°. We machine racks to your specified length, with or without mounting holes. Tolerances held to AGMA Q8–Q10 depending on requirements.
Custom options include: non-standard lengths, drilled/tapped mounting holes, black oxide or electroless nickel surface treatment, and matching pinion gears manufactured to the same module and pressure angle.
Whether you need a replacement rack for existing equipment or a custom length for a new build, send us your drawing or specifications for a quote. No minimum order quantity.
Specifications
| Module Range | 0.5, 0.8, 1, 1.5, 2, 2.5, 3 |
|---|---|
| Pressure Angle | 20° (14.5° available on request) |
| Materials | 1045 Carbon Steel, 304 Stainless Steel |
| Surface Treatment | As-machined, Black Oxide, Electroless Nickel |
| Length | Custom — specify overall length and mounting requirements |
| Precision Grade | AGMA Q8–Q10 standard (higher available) |
Customizable standard gear rack models include: GEAHR, GEARB, GEARK and equivalent series. Contact us with your reference number for a quote.
