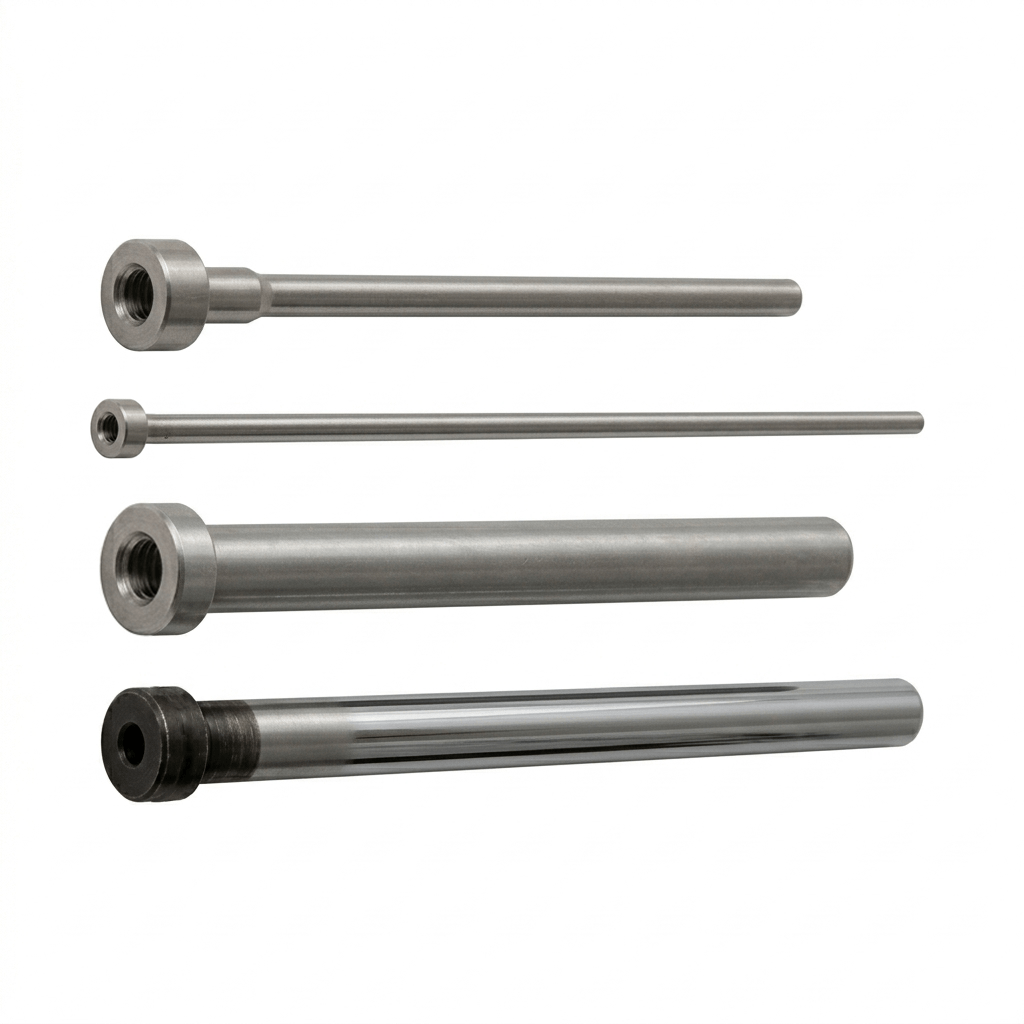

Precision Ejector Sleeves
High-performance Ejector Sleeves (Camisas de Extração) designed for reliable part ejection in multi-component molds. Perfectly matched with our center pins for seamless operation.
Material: SKD61 / H13
Hardness: Surface 900-1100 HV
Standard: DIN 1530-D / JIS
Description
Our Ejector Sleeves are engineered for high-speed injection molding where precision is critical. Used in conjunction with an ejector pin (center pin), these sleeves allow for the ejection of parts around core pins, ensuring a clean release without damaging the molded component.
Technical Specifications:
Material: SKD61 (1.2344) or H13 Hot Work Steel.
Surface Hardness: Nitrided to 900-1100 HV for maximum wear resistance.
Core Hardness: Hardened to 42-48 HRC for excellent toughness and anti-breaking properties.
Tolerances: Inner diameter (ID) and Outer diameter (OD) precision controlled within ±0.005mm to ensure perfect fitment.
Key Features:
High Concentricity: Exceptional alignment between the inner and outer diameters reduces friction and prevents galling.
Heat Resistance: Maintains structural integrity and hardness even under continuous high-temperature molding cycles.
Smooth Operation: Fine-ground finish on both internal and external surfaces for low-friction movement.
Global Export: We are a trusted supplier of buchas de extração for mold makers in Brazil, Portugal, and the international tool & die industry.
Z45/d1xd2xl1、Ejector sleeve, hardened and nitrided、Z457/d1xd2xl1、Ejector sleeve, with DLC coating, hardened and nitrided
