Precision Miter Gears Inch Metric 1:1 Ratio Straight Spiral

Description

What Are Miter Gears?

Miter gears are a special type of bevel gear with a 1:1 ratio, identical size and tooth count on both mating gears. They are used to transmit motion at a 90-degree angle between shafts. Unlike bevel gears which can have various ratios, miter gears always pair identical gears.

Types of Miter Gears We Offer

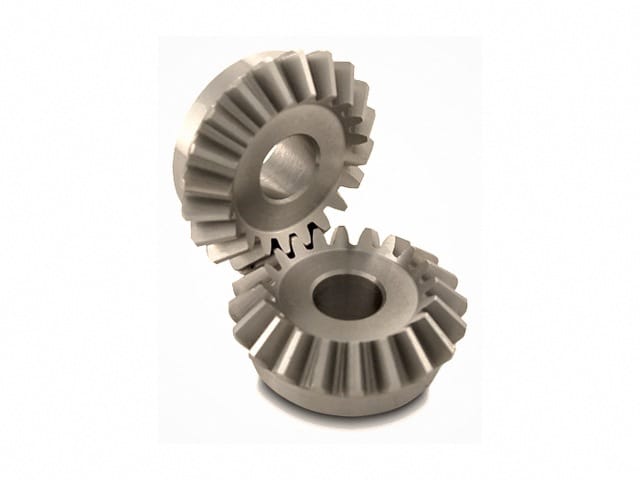

Straight Tooth Miter Gears — Manufactured using CNC Coniflex cutting systems for precision interlocking teeth. Economical and widely used in general power transmission applications. Available in precision and commercial grades.

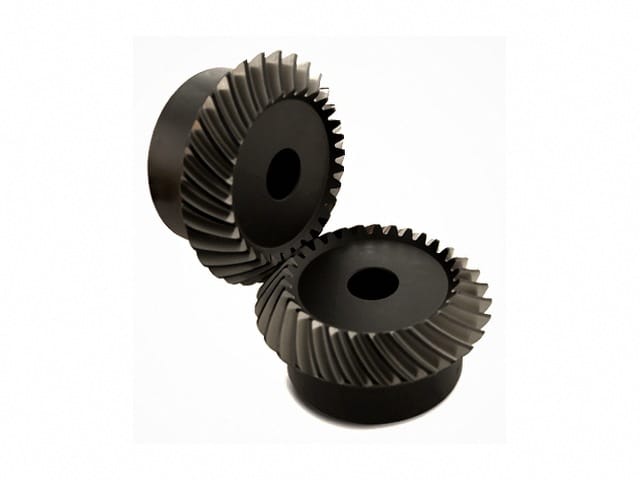

Spiral Miter Gears — Helical tooth form for smoother engagement, quieter operation, and higher load capacity. Spiral miter gears must be ordered in matched pairs (one left-hand and one right-hand).

Angular Miter Gears — Available in various shaft angles beyond standard 90 degrees (45, 60, 120 degrees) for special installation requirements.

Specifications

Inch Sizes: 16 to 72 Diametral Pitch (DP)
Metric Sizes: Module 0.5 to 8
Ratio: 1:1 (identical mating gears)
Shaft Angle: 90 degrees standard; custom angles available
Materials: Alloy steel (SCM440/4140), stainless steel (SUS304, 416SS), brass (C3604), nylon, POM
Hub Styles: Pin-type, clamp-type, Fairloc-type
Heat Treatment: Case-hardening, through-hardening, or as specified

Applications

Machine Tool Drives • Power Transmission Systems • Printing Presses • Packaging Machinery • Agricultural Equipment • Textile Machinery • Conveyor Drives • Pump Drives

Why Choose GUNRI for Miter Gears?

• CNC Coniflex and spiral bevel gear cutting capabilities
• Matched pairs supplied with verified tooth contact pattern
• Precision and commercial grades to fit your budget
• Engineering support for custom shaft angles and mounting configurations
• Competitive pricing, fast delivery for both stock and custom orders
