Self-Lubricating Graphite Cam Slider for Aerial Cam Units – Enhanced Durability in Metal Stamping

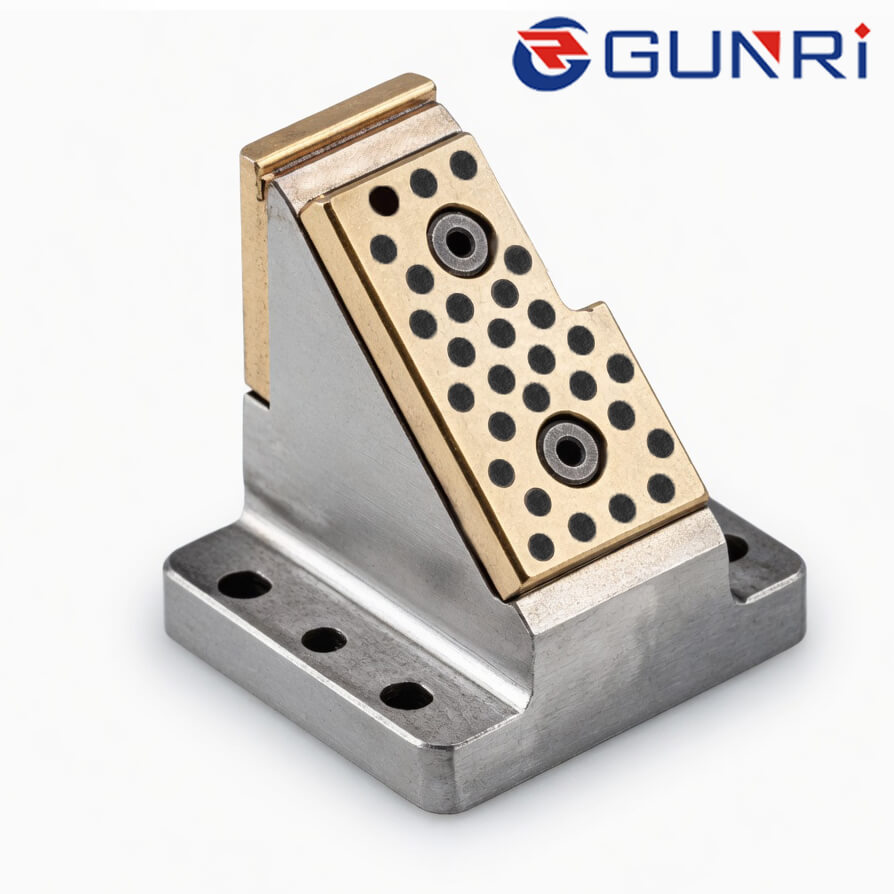

In modern high-speed stamping dies, self-lubricating cam sliders (also known as wear plates or slide plates for aerial cam units) play a critical role in converting vertical press motion into precise horizontal or angled movements. The component shown in your photos features a robust steel base combined with a brass/bronze working surface embedded with multiple flat graphite plugs – a proven solution for demanding stamping applications.

Core Technology: Graphite Self-Lubricating System

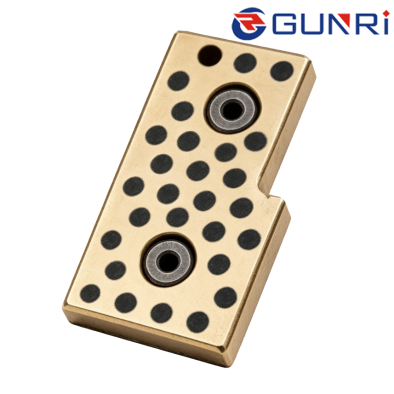

The most distinctive feature of this cam slider is the array of embedded graphite inserts visible as small black dots on the bronze surface.

• Solid Lubrication Mechanism: During operation, graphite particles gradually release and form a thin, stable lubricating film on the sliding surface. This significantly reduces the friction coefficient without relying heavily on external oil.
• Flat-Embedded Graphite Plugs: The graphite is precisely flush-mounted, ensuring a perfectly flat contact surface that prevents scratching or damaging the mating cam holder while delivering continuous self-lubrication.
• Maintenance Advantage: Although light oil is still recommended periodically, the built-in graphite lubrication dramatically reduces lubrication frequency and extends service intervals, making it ideal for high-volume, automated production lines.

Structural and Material Advantages

• Composite Construction: High-strength steel base provides excellent rigidity, while the brass/bronze working face offers superior wear resistance and heat dissipation.
• High Load Capacity: Designed to withstand significant lateral forces common in cam-driven operations such as side piercing, trimming, and forming.
• Precision Guidance: Typically paired with V-guide plates, positive return systems, and springs to ensure accurate, repeatable movement and reliable reset after each stroke.
• Angle Flexibility: Available in various angles (commonly 0° to 70°), allowing engineers to optimize stroke and force according to specific die requirements.

Key Benefits in Real-World Stamping Applications

• Extended Service Life: The combination of graphite self-lubrication and hardened surfaces (often HRC 45–55) enables this wear plate to achieve hundreds of thousands to over a million cycles, far surpassing conventional sliding components.
• Higher Production Efficiency: Reduced downtime for lubrication and maintenance, consistent precision, and lower risk of galling or seizing.
• Cost Savings: Simplifies die design, shortens lead times, and reduces overall tooling costs for automotive, appliance, and electronics metal stamping industries.
• Installation Tips: Ensure proper alignment during installation, protect against metal debris contamination, and perform regular visual checks of the graphite plugs and sliding surface.

Conclusion This graphite-embedded self-lubricating cam slider represents a high-performance standard component for aerial cam units in progressive and transfer dies. Its reliable solid lubrication, robust construction, and low-maintenance design make it an excellent choice for manufacturers seeking longer die life and stable high-speed operation.
