Why Your Ball Cages Fail at 500 SPM: The Case for Preloaded Needle Roller Guides

If you are running high-precision stamping dies at 500 SPM (Strokes Per Minute) or higher, you are likely familiar with the signs of impending failure: a slight die chatter, followed by station-to-station variation, and finally, the nightmare of every toolroom manager—cold welding and unplanned downtime.

While standard ball cages are reliable at moderate speeds, they hit a physical ceiling in high-speed environments. If you’re tired of dealing with cage migration (creeping) and constant maintenance, it’s time to look beyond point-contact guidance.

Why Ball Cages Struggle at High Speeds

The fundamental weakness of a standard ball cage is its Point Contact. Under heavy reversal shocks and side loads, each ball concentrates immense pressure on a microscopic area of the pillar. At 500 SPM, this creates several critical failure points:

• Skidding and Smearing: During rapid reversal, balls slide before they roll, causing adhesive wear on the guide pillar.
• Thermal Seizure: Friction-induced heat causes the pillar to expand, closing the operating clearance and leading to a jamming or seizure event.
• Cage Migration (Creeping): High-frequency vibration causes the cage to drift out of position, requiring frequent manual resets.

The Solution: Line Contact Technology

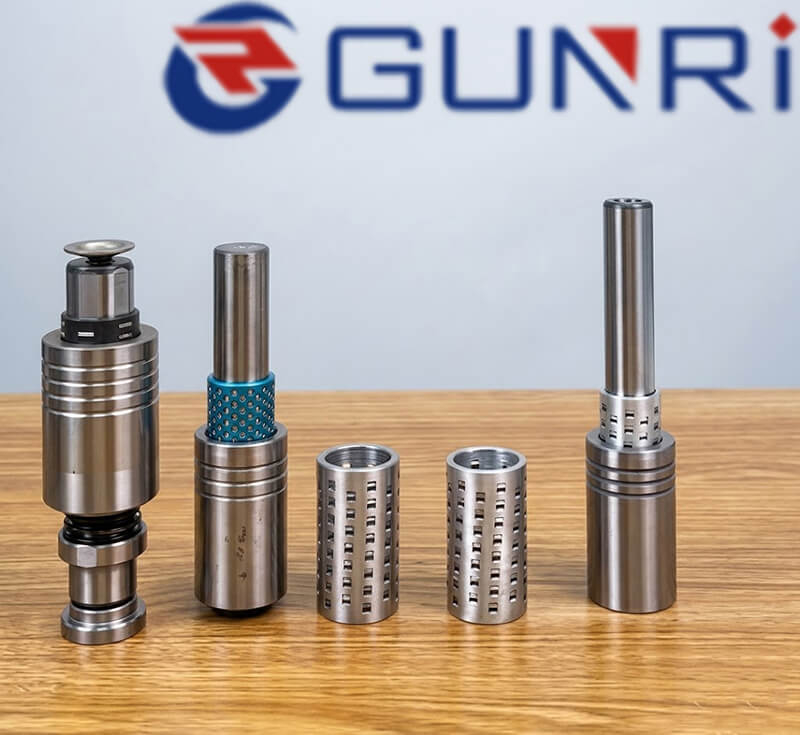

To bridge the gap between standard performance and high-speed reliability, GUNRI Precision has developed the Preloaded Needle Roller Guide Sleeve.

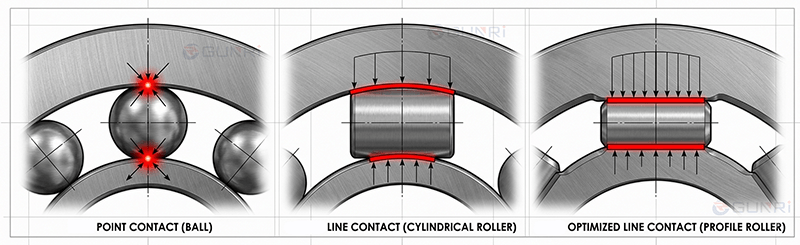

Unlike traditional ball bearings, our system utilizes Line Contact technology. By optimizing the R-profile matching between the sleeve and the pillar, we distribute the load across a significantly larger surface area. This offers:

• Superior Rigidity: Virtually eliminates deflection during high-speed impacts.
• High Rigidity & Zero Backlash: A preloaded profile roller cage ensures the most stable guidance during the entire stroke.
• Non-Rotating Stability: Unlike rotating ball units, our non-rotating guide sleeve stays locked in its path, providing more predictable motion.

The SMART Alternative to Tier-1 European Systems

If you have long relied on premium European brands for high-precision guidance, you already know the performance benchmarks for a backlash-free system. You expect extreme rigidity, thermal stability, and a long service life.

At GUNRI Precision, we respect those standards. We deliver that same backlash-free reliability and line-contact rigidity through advanced engineering, but with a supply chain built for speed. We provide a price-to-performance ratio that makes sense for modern toolrooms looking to stay competitive without sacrificing the precision they’ve come to expect from Tier-1 systems.

A True “Drop-In Replacement” for Ball Cages

The most common barrier to upgrading is the cost of re-engineering the die set. This is where the GUNRI solution excels. Our needle roller guide sleeve is designed as a direct drop-in replacement for standard ball cages.

• No Re-Machining Required: Zero changes to your existing die sets or pillar specifications. It is a true hardware-compatible upgrade for your current toolroom standards.
• Tier-1 Performance Levels: Achieve the ultra-high stability and precision demanded by high-speed stamping—comparable to the industry’s most premium European guide systems—without the long lead times or complex engineering change orders.
• Cost-Effective Performance: A plug-and-play solution that integrates seamlessly into your high-speed tooling, offering a high-ROI alternative to expensive brand-name components.

Disclaimer: All brand names and trademarks (such as Agathon, Fibro, or others) mentioned or implied are the property of their respective owners. GUNRI products are independent, high-performance alternatives designed for compatibility and are not affiliated with or endorsed by these manufacturers.

Stop Fighting Cage Failure—Upgrade Your Productivity (and Your Portfolio)

Choosing the right guidance is about lowering your Total Cost of Ownership (TCO) and maximizing machine uptime. If ball cage failure is the bottleneck in your production, upgrading to a Backlash-Free Roller Guide is the most strategic move for your toolroom this year.

Partner with GUNRI Precision Beyond providing world-class components, we are a high-capacity OEM/ODM manufacturer. Whether you are an end-user looking to stabilize your press or a local distributor seeking a high-performance alternative to Tier-1 European brands to offer your own clients, GUNRI provides the technical edge and manufacturing scale you need.

• For Manufacturers: Increase your SPM and slash downtime with our drop-in roller sleeves.
• For Distributors: Expand your catalog with high-demand, cost-effective precision components backed by our global supply chain.

Ready to unlock your true potential?

Contact GUNRI Precision today for a technical fit check or to discuss wholesale and partnership opportunities. Let’s get your press—and your business—running at peak performance.
