What are Nitrogen Gas Springs Used For? The Ultimate Guide to Industrial Applications
What are Nitrogen Gas Springs Used For? The Ultimate Industrial Guide
In the world of precision manufacturing and heavy-duty stamping, nitrogen gas springs have become an indispensable component. But what exactly makes them superior to traditional mechanical springs, and where are they most effectively used?
What is a Nitrogen Gas Spring?
A nitrogen gas spring is a high-pressure, self-contained cylinder that uses compressed nitrogen gas (N2) to exert force. Unlike coil springs, they provide a much higher force in a significantly smaller footprint, offering a “flat force” curve that is critical for precision metal forming and mold design.

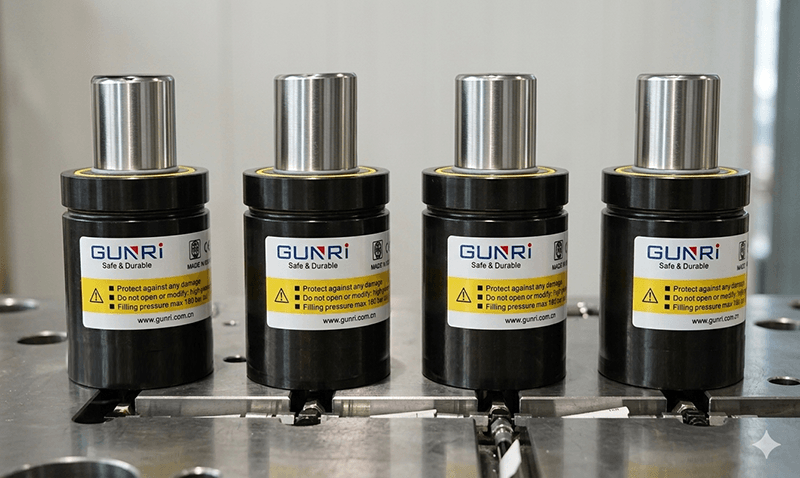

Top 5 Primary Applications of Nitrogen Gas Springs
- Metal Stamping and Die Casting: They provide the necessary blank-holding force to ensure that sheet metal is held firmly while being formed, preventing wrinkling and tearing.
- Automotive Manufacturing: Used in heavy-duty presses to shape chassis components and body panels with high-volume consistency.
- Plastic Injection Molding: Compact nitrogen cylinders are used to return ejector plates or manage delayed actions in complex mold designs.
- Heavy Machinery and Automation: Acting as counterbalances or tensioning devices in industrial robots to provide smooth, controlled motion.
- Custom Tooling and Fixtures: Ideal for specialized jigs where space is extremely limited but high clamping force is required.

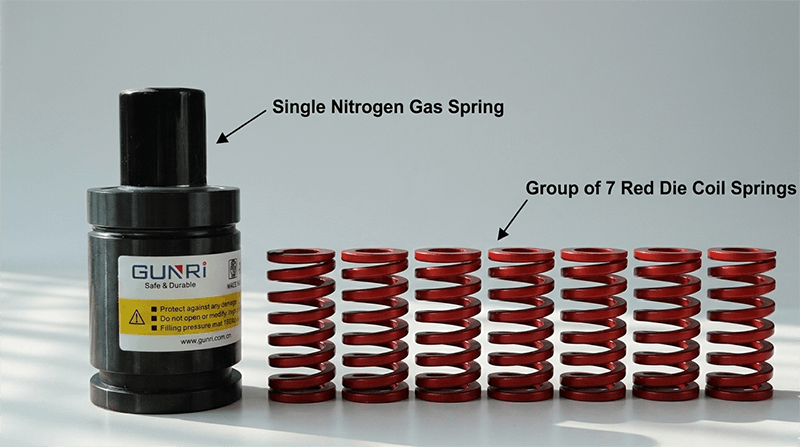

Nitrogen Gas Springs vs. Coil Springs
| Feature | Nitrogen Gas Springs | Mechanical Coil Springs |
|---|---|---|
| Force Density | High (More force in less space) | Low (Requires large footprint) |
| Pressure Consistency | Constant force throughout stroke | Force increases sharply as compressed |
| Adjustability | Yes (Refillable and adjustable) | No (Fixed spring rate) |
| Service Life | Extremely Long (2M+ strokes) | Shorter (Prone to fatigue) |
Frequently Asked Questions (FAQ)
Why use nitrogen instead of compressed air?
Nitrogen is an inert gas, which prevents internal combustion and corrosion. It ensures the safety and longevity of the seals under high-pressure conditions.
Are nitrogen gas springs refillable?
Yes. Most industrial-grade nitrogen gas springs are designed to be serviceable, allowing you to replace seals and recharge the gas for a longer lifecycle.
Are they safe to use in high-speed presses?
Modern nitrogen gas springs include safety features like over-pressure and over-stroke protection to ensure operator safety during high-speed operations.
