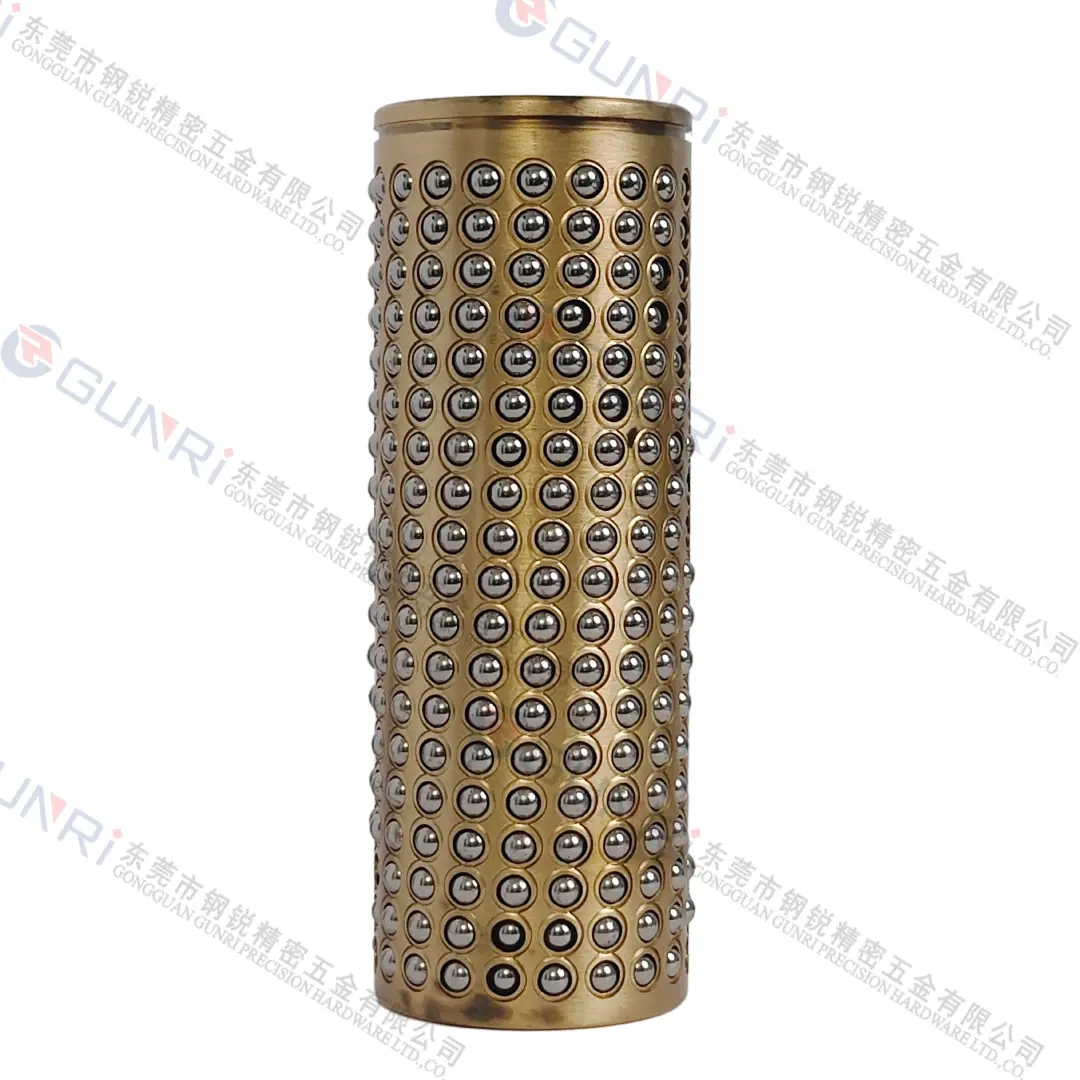

Custom Brass Ball Cage with Circlip Groove for Guide Post Systems
Precision brass ball cage with circlip groove, designed for high-accuracy guide post systems. Ideal for mold and die applications requiring smooth motion, low friction, and secure axial positioning. Custom sizes and drawings accepted.
Description
What Is a Ball Cage and How Does It Work?
A ball cage, also known as a ball retainer, is a key component used in guide post systems to ensure smooth, low-friction linear movement. It holds a series of precision balls in place, allowing them to roll evenly along the mating shaft or guide pin. This minimizes wear, improves guiding accuracy, and increases the service life of both the tool and the machine.
Our brass ball cages are specifically designed for high-performance mold and die applications, ensuring precise alignment even in high-speed or high-load environments.
Why Choose a Circlip Groove?
The circlip groove is a precision-machined feature on the outer surface of the ball cage. It is designed to accommodate a circlip (snap ring), which serves as an axial positioning and locking element.
This groove enables:

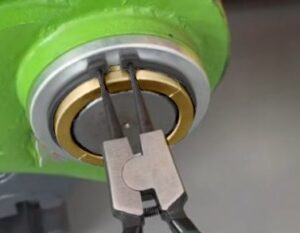

Easy installation and removal
Secure axial retention during operation
Consistent positioning within the housing or bushing
Circlip grooves are especially useful in modular die systems where quick assembly and maintenance are essential.
Note: Please refer to technical drawings or request a 3D model to confirm groove dimensions and tolerances.
Brass vs. Steel: Why Brass Is the Smarter Choice
While both brass and steel are common materials for ball cages, brass offers several unique advantages:
| Feature | Brass | Steel |
|---|---|---|
| Lubrication | Naturally low friction, good dry-running properties | Requires regular lubrication |
| Wear resistance | Excellent | Good |
| Corrosion resistance | High | Moderate |
| Noise | Quieter during motion | Louder due to metal contact |
| Weight | Lighter | Heavier |
Brass is particularly recommended in clean-room, high-precision, or low-maintenance environments.
Compatible with Industry-Standard Guide Posts
Our brass ball cages with circlip grooves are compatible with many leading brands and standards, including:
MISUMI P or B-type guide posts
DME & HASCO die sets
Punch mold systems for automotive or electronics tooling
We offer sizing support and technical documentation to help you choose the right cage for your application.
Customization Options Available
We understand that one size does not fit all in precision tooling. That’s why we offer full customization on request:
Outer/inner diameter and length
Circlip groove location and width
Ball material (e.g., stainless steel, ceramic)
Number and size of ball pockets
Lubrication holes or surface treatments
Simply upload your drawing or contact our team for a tailored solution.
