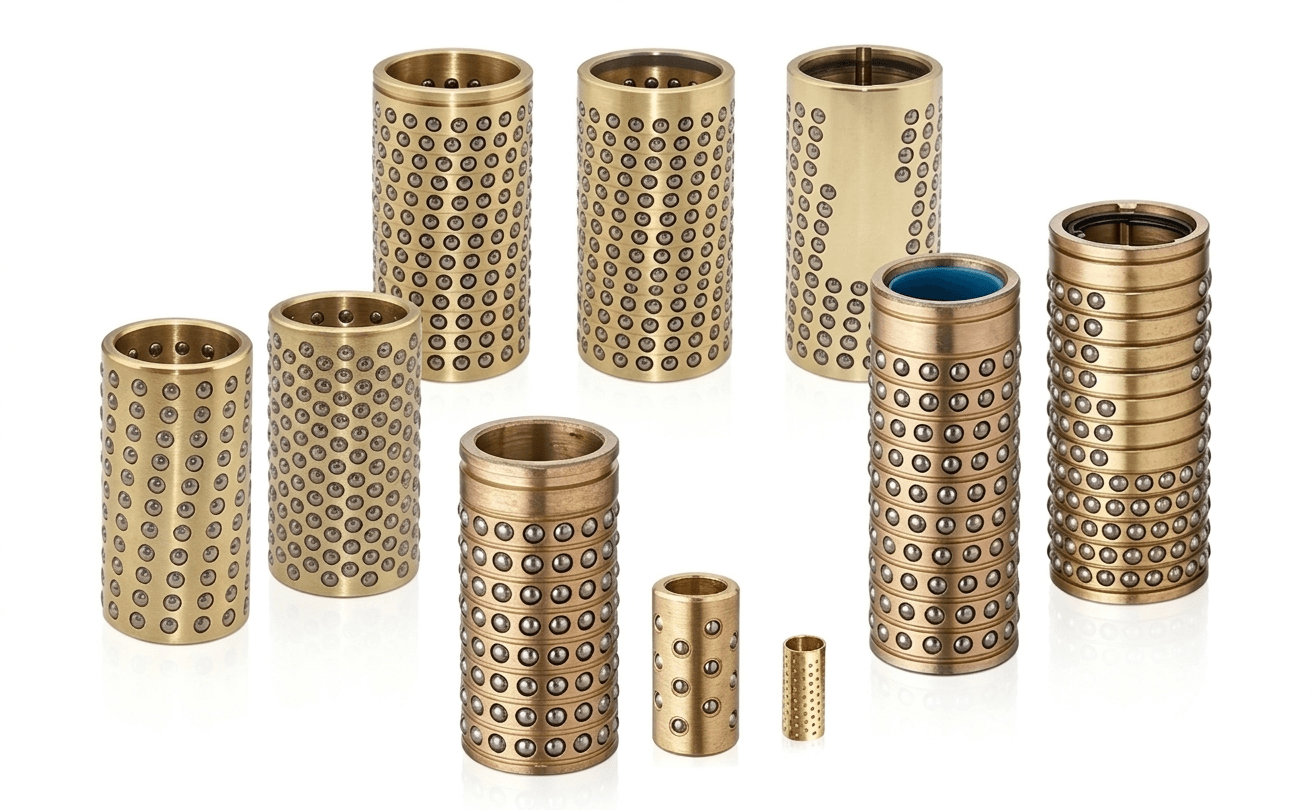

Precision brass ball cages (ball retainers) for stamping dies, injection molds, and guide systems. Available in JIS, DIN, AISI, DANLY, FIBRO, MAHR standards and custom designs. ISO 9001 certified, no minimum order. Contact us for a quote.
| Parameter | Typical Range |
|---|---|
| Outer Diameter (OD) | 20 mm - 100 mm |
| Inner Diameter (ID) | 10 mm - 90 mm |
| Length / Height | 5 mm - 20 mm (typically 8-12 mm) |
| Ball Diameter | 1.5 mm - 5 mm (typically 2-3 mm) |
| Ball Count | 10 - 50 balls per cage (varies by size) |
| Available Standards | JIS, DIN, AISI, DANLY, FIBRO, MAHR, Custom |
| Part No. | Type | Length (in) | ID (in) |
|---|---|---|---|
| 6-0806-821C | I | 1.50 | 1.00 |
| 6-0808-821C | I | 2.00 | 1.00 |
| 6-0810-822C | II | 2.50 | 1.00 |
| 6-1208-821C | I | 2.00 | 1.50 |
| 6-1612-821C | I | 3.00 | 2.00 |
| 6-2416-821C | I | 4.00 | 3.00 |
Need brass ball cages? Tell us your standard type, OD, ID, length, ball size, and quantity. We will respond within 24 hours with a detailed quote. ISO 9001 certified. No minimum order.
What is Automotive Ball Bearing Cages? Automotive ball bearing cages play a crucial role in enhancing the performance and longevity of ball bearings used in various automotive applications. These cages are designed to hold and distribute the steel balls within the bearing assembly, allowing smooth rotation and minimizing friction. They are an essential component in…
Ball Cage Bushes come in a choice of copper, aluminum, and plastic materials. They are precision roller bearing components known for their low friction, extended lifespan, high precision, and adaptability to various motion types. These next-generation bearings find extensive applications in cold impact molds and high-precision machine tools.
Gunri offers a diverse range of Ball Cage Bushes to suit your specific requirements, available in two main types: spiral array and straight-line array.
Ball cage with circlip and fastening ring groove, Brass
What is Brass ball cages? Brass ball cages are mechanical components used to guide and control the movement of steel balls in various industrial applications. These cages are constructed from brass, a durable and corrosion-resistant material, known for its mechanical stability and excellent sliding properties. Brass ball cages ensure smooth motion and are commonly utilized…
Precision brass ball cage with circlip groove, designed for high-accuracy guide post systems. Ideal for mold and die applications requiring smooth motion, low friction, and secure axial positioning. Custom sizes and drawings accepted.
Engineered for high-speed die sets and mold manufacturing, this heavy-duty brass ball cage features an integrated circlip groove for secure axial retention. It delivers exceptional wear resistance, smooth rolling linear movement, and long-lasting operational reliability under demanding stamping forces.
Brass ball cages are manufactured across a range of dimensions. Below are typical ranges for common standards.
| Parameter | Typical Range |
|---|---|
| Outer Diameter (OD) | 20 mm – 100 mm |
| Inner Diameter (ID) | 10 mm – 90 mm |
| Length / Height | 5 mm – 20 mm (typically 8-12 mm) |
| Ball Diameter | 1.5 mm – 5 mm (typically 2-3 mm) |
| Ball Count | 10 – 50 balls per cage (varies by size) |
| Available Standards | JIS, DIN, AISI, DANLY, FIBRO, MAHR, Custom |
The variety of brass ball cage assemblies is due to the diverse requirements of each project. Below is a guide to common standard types. Not limited to these – we can manufacture to any drawing or sample.
Japanese Industrial Standard ball cages, commonly used in Asian mold and die manufacturing. Known for precision and consistency.
Common sizes: OD 20-80 mm, various lengths per JIS B standards.
Deutsches Institut für Normung standard ball cages, widely used in European tooling. High precision and interchangeability.
Common sizes: OD 20-100 mm per DIN 983 / DIN ISO 9448 standards.
American standard ball cages per AISI specifications, commonly used in North American stamping and mold industries.
Material: Brass alloys per AISI/ASTM standards.
DANLY (Dayton Lamina) standard ball cages are widely used in the North American stamping die industry. Characterized by a distinctive U-shaped ball arrangement.
Part number format: 6-XXXX-XXX series with Type I or Type II configurations.
| Part No. | Type | Length (in) | ID (in) |
|---|---|---|---|
| 6-0806-821C | I | 1.50 | 1.00 |
| 6-0808-821C | I | 2.00 | 1.00 |
| 6-0810-822C | II | 2.50 | 1.00 |
| 6-1208-821C | I | 2.00 | 1.50 |
| 6-1612-821C | I | 3.00 | 2.00 |
| 6-2416-821C | I | 4.00 | 3.00 |
Need a specific DANLY part number? Contact us with your requirements.
FIBRO standard ball bushings are well-known in German and European precision equipment. Available in both needle and ball configurations.
MAHR standard ball cages, commonly used in precision measurement and high-accuracy guide systems. Suitable for applications requiring minimal runout and consistent positioning.
Contact us for MAHR-standard ball cage availability.
Miniature ball cages for compact, high-precision applications including small molds, chip manufacturing equipment, and miniature guide systems.
Need a different standard or custom design? We manufacture ball cages to any specification. Send us your drawing or part number for a custom quote.
Need brass ball cages? Tell us your standard type, OD, ID, length, ball size, and quantity. We will respond within 24 hours with a detailed quote. ISO 9001 certified. No minimum order.
Brass ball cages are essential in stamping die sets, providing precise guidance between guide posts and bushings. The steel balls reduce friction and enable smooth, repeatable die operation at high cycle rates.
In plastic injection molds, ball cages guide the movement of mold halves with precision. Brass construction offers corrosion resistance against moisture and mold release agents.
Used in linear guide systems, sliding tables, and automated machinery where smooth low-friction motion is required, in dry or minimally lubricated conditions.
Widely used in automotive press die tooling and aerospace composite mold tooling, where precision guiding and long service life are critical.
Any standard (JIS, DIN, AISI, DANLY, FIBRO, MAHR), any size, any ball configuration. Send us your 2D/3D drawing for a custom quote. ISO 9001 certified. No minimum order.
