Industry Applications
Stamping Die Guide Components
Graphite cast iron wear plates are widely used as guide elements in stamping dies, providing precise alignment and wear resistance under high cyclic loads. The self-lubricating feature eliminates the need for external grease, keeping the die area clean and reducing maintenance intervals.
Injection Mold Slide Plates
In plastic injection molds, wear plates with graphite lubrication provide maintenance-free operation in slide mechanisms and core pull applications. Suitable for cleanroom and medical molding environments where oil contamination cannot be tolerated.
Automation & Linear Motion Equipment
Used as slide plates in automated assembly lines, material handling equipment, and linear guide systems where dry lubrication is preferred. Ideal for food processing, packaging, and pharmaceutical equipment.
Heavy Machinery & Press Equipment
Cast iron wear plates provide durable slide surfaces in heavy equipment including presses, forging machines, and foundry equipment. Customizable thickness and hole patterns for retrofit applications.
Custom Applications
Any size, any material, any hole pattern. Send us your 2D/3D drawing for a custom quote. ISO 9001 certified. No minimum order.
Technical FAQ
1. What are graphite cast iron wear plates?

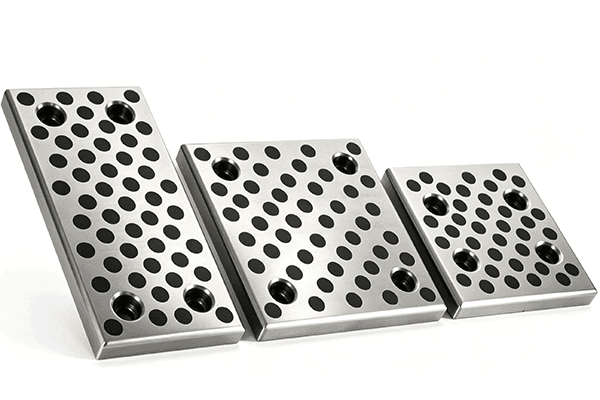

Graphite cast iron wear plates are self-lubricating mechanical components made from cast iron or steel with embedded graphite plugs or solid lubricants. During operation, graphite transfers to the mating surface, creating a dry lubricating film that reduces friction and wear without external oil or grease.
2. Are they interchangeable with major brand standards?
Yes. Our wear plates are manufactured to match the dimensions, material specifications, and hardness of standard industry series. We produce replacements compatible with common configurations. Send us your original part number or drawing for verification.
3. What materials are available?
We manufacture wear plates in multiple material grades including FC250 cast iron with graphite plugs, FC250 cast iron with solid lubricant, S45C (AISI 1045) carbon steel with induction hardening, SKS3 tool steel, and other materials upon request. Each material offers different hardness, load capacity, and wear resistance for specific applications.
4. What dimensions can you make?
We produce wear plates in a wide range of dimensions. Standard width ranges from 28mm to 200mm, length from 75mm to 350mm, and thickness from 10mm to 20mm or custom. Hole patterns can be 2-bolt, 4-bolt, or fully custom per your drawing.
5. Do you accept small quantities?
Yes. There is no minimum order requirement. We accept orders from single pieces for maintenance replacement to high-volume production. MOQ is always negotiable.
6. How do I choose the right material for my application?
Selection depends on load, speed, operating environment, and mating surface material:
- Cast iron with graphite plugs (FC250) – Best for low to medium load, low-speed reciprocating motion. Good vibration damping and economy.
- Cast iron with solid lubricant (20mm thick) – Higher rigidity for press die guide applications.
- Induction-hardened steel (S45C, 40HRC~) – For cam mechanisms and applications requiring higher surface hardness.
- Tool steel (SKS3, 58HRC~) – For extreme wear resistance in high-load, high-cycle applications.
Contact us with your application details and we will recommend the optimal material and configuration.
7. What should I consider when sourcing from China?
When sourcing graphite cast iron wear plates from China, key considerations include: verifying material grades match specifications (FC250 vs FC300, S45C vs 1045), confirming dimensional tolerances, understanding the supplier’s quality control process, and establishing clear communication on modification requirements. We provide dimensional inspection reports, material certifications upon request, and direct English communication throughout the order process.
