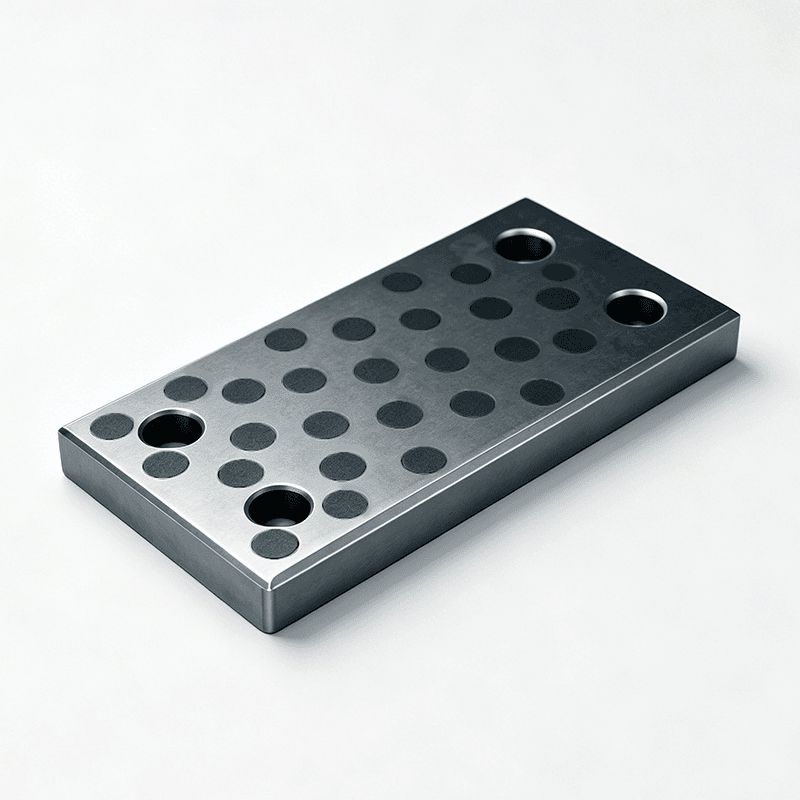

FWP Series – Cast Iron Wear Plates with Graphite Plugs, Configurable W/L
FWP series cast iron wear plates with embedded graphite plugs. Configurable W (48-150mm) x L (75-250mm). Self-lubricating, maintenance-free design.
Description
Product Overview
FWP series cast iron wear plates with embedded graphite plugs (Oiles #500F / 500SP compatible design). Designed for low to medium load, low-speed reciprocating motion applications requiring maintenance-free operation.
Material Specifications
| Base Material | Cast Iron FC250 (Oiles #500F compatible) |
| Lubricant | Embedded Graphite Plugs (Special Solid Lubricant) |
| Hardness | HB 200~240 |
| Surface Pressure P | 100 N/mm² |
| PV Value | 200 N/mm²×m/min |
| Operating Temperature | -50°C to +200°C (max 300°C) |
| Friction Coefficient | 0.07~0.15 |
Configurable Dimensions
| Width W (mm) | 48, 75, 100, 125, 150 |
| Length L (mm) | 75, 100, 125, 150, 200, 250 |
| Thickness T | Standard ~10mm (custom available) |
Applications
- Linear motion guide plates for automation components
- General wear protection in industrial machinery
- Heavy equipment slide surfaces (mining, forestry, foundry)
- HVAC and material handling equipment
- Mold and die guide components
Need a different size or type? FWP is one of our standard offerings. We custom manufacture many more types of wear plates. ISO 9001 Certified | No Minimum Order. Contact us with your requirements.
