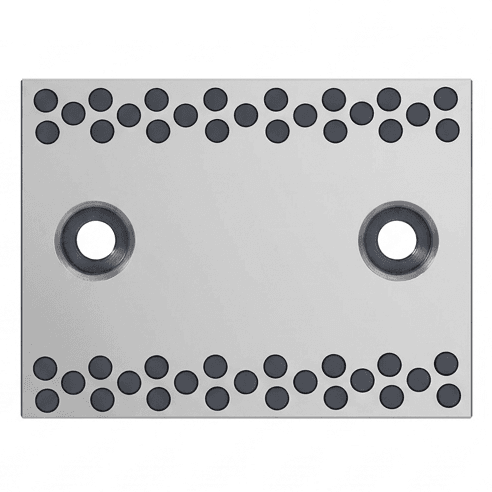

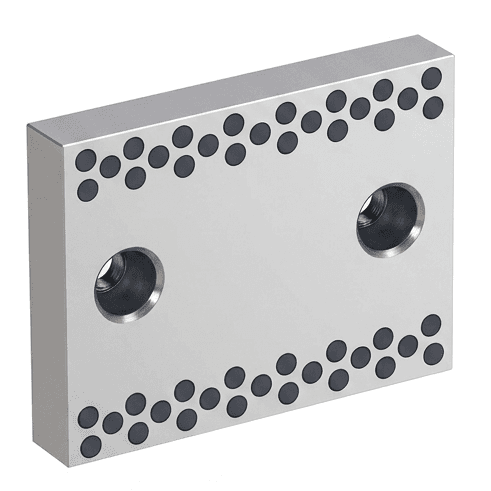

CCUPS Series – Cam Center Upper Plates, 1045 Steel (S45C) with Solid Lubricant, Configurable
CCUPS series cam center upper plates, S45C/1045 steel with solid lubricant. Induction hardened 40HRC~. Configurable W x T. Compatible with Misumi CCUPS.
Description
Product Overview
CCUPS series cam center upper plates made from S45C (AISI 1045 equivalent) carbon steel with special solid lubricant. Induction hardened to 40HRC~ for superior wear resistance in press die cam mechanisms.
Material Specifications
| Base Material | S45C (AISI 1045 equivalent) Carbon Steel |
| Lubricant | Special Solid Lubricant (embedded) |
| Hardness | 40HRC~ (Induction Hardened) |
| Compatible With | Misumi CCUPS Series |
Configurable Dimensions
| W Dimension (Width) | Configurable per application |
| T Dimension (Thickness) | Configurable per application |
| Solid Lubricant | With (standard) |
Applications
- Press die cam center mechanisms
- High-speed stamping operations
- Automotive press die tooling
- Industrial cam followers and slide mechanisms
Need a different size or type? CCUPS is one of our standard offerings. We custom manufacture many more types of wear plates. ISO 9001 Certified | No Minimum Order. Contact us with your requirements.
Our Manufacturing Capabilities
In-house machining30 CNC lathes (Okuma / Takisawa) and 6 machining centers for turned and milled precision components.
Grinding & honingCylindrical, internal and centerless grinding plus honing done in-house for tight diameters and surface finish.
On-site inspectionRoundness, roughness, Vickers hardness, force-curve, burst and fatigue testing before shipment.
Certified quality systemManufactured under ISO 9001:2015 and IATF 16949:2016; OEM drawings and brand equivalents welcome.
