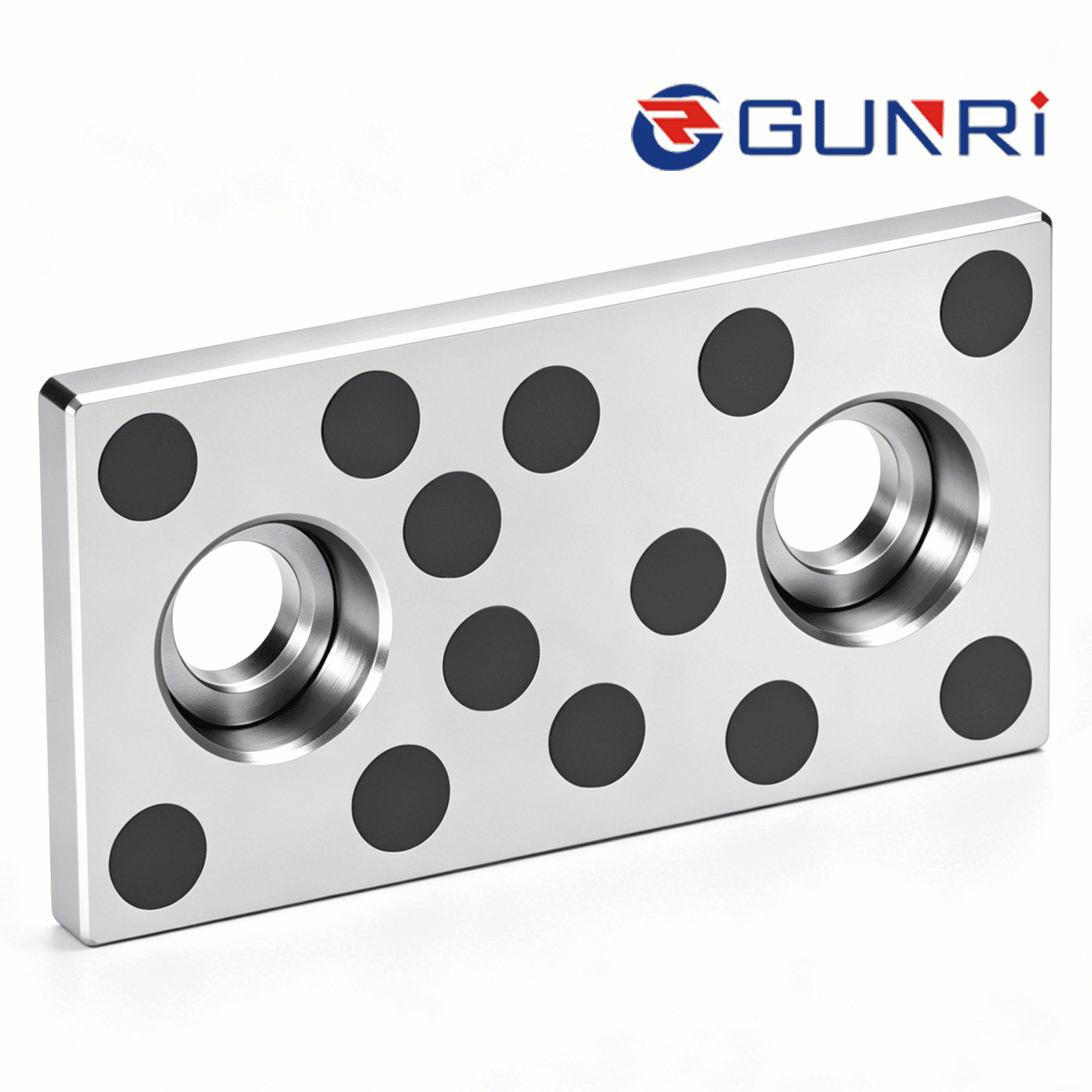

SPTH Series – SKS3 Tool Steel Oil-Free Slide Plates with Graphite, 10mm Thick, Configurable W/L
SPTH series SKS3 tool steel oil-free slide plates with graphite, 10mm thick, 58HRC~. Configurable W 28-150mm x L 75-250mm. Compatible with Misumi SPTH.
Description
Product Overview
SPTH series oil-free slide plates made from SKS3 tool steel with 58HRC~ hardness and embedded graphite solid lubricant. 10mm fixed thickness with configurable width and length. Designed for press die guide components requiring high hardness and wear resistance.
Material Specifications
| Base Material | SKS3 Tool Steel (Baseplate: SS400) |
| Lubricant | Special Solid Lubricant (Graphite, embedded) |
| Hardness | 58HRC~ |
| Thickness | 10mm (fixed) |
| Compatible With | Misumi SPTH Series |
Configurable Dimensions
| Width W (mm) | 28~75 (2 holes), 100+ (4 holes/bolt holes) |
| Length L (mm) | 75, 100, 125, 150, 200, 250 |
| Bolt Holes | 2 or 4 (depends on W dimension) |
Applications
- Press die guide components and slide plates
- High-hardness wear surfaces for stamping dies
- Oil-free slideways requiring 58HRC+ hardness
- Maintenance-free guide components
Need a different size or type? SPTH is one of our standard offerings. We custom manufacture many more types of wear plates. ISO 9001 Certified | No Minimum Order. Contact us with your requirements.
Our Manufacturing Capabilities
In-house machining30 CNC lathes (Okuma / Takisawa) and 6 machining centers for turned and milled precision components.
Grinding & honingCylindrical, internal and centerless grinding plus honing done in-house for tight diameters and surface finish.
On-site inspectionRoundness, roughness, Vickers hardness, force-curve, burst and fatigue testing before shipment.
Certified quality systemManufactured under ISO 9001:2015 and IATF 16949:2016; OEM drawings and brand equivalents welcome.
