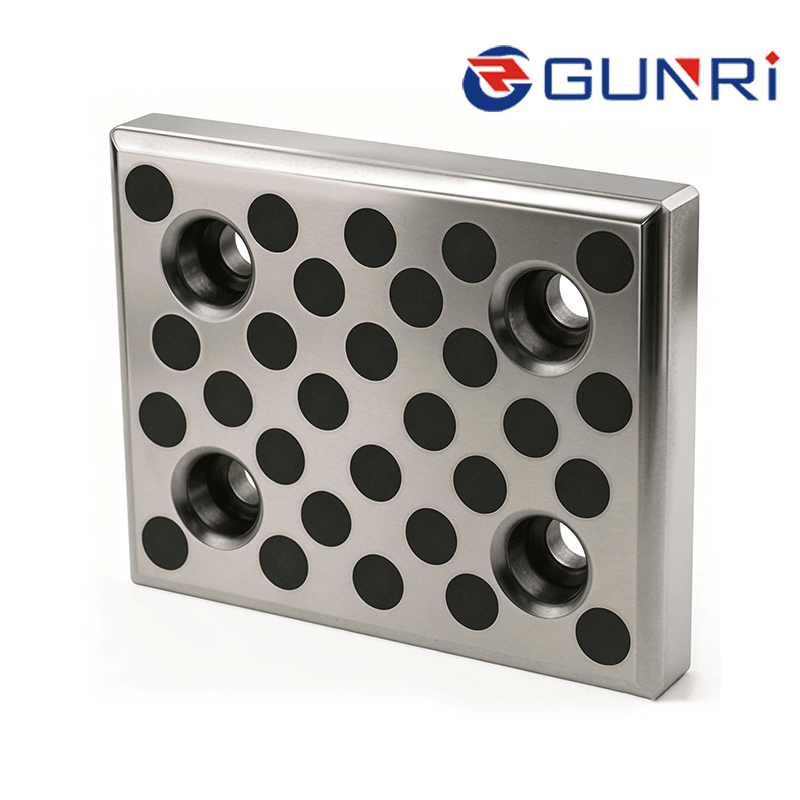

MWF/MWFT Series – FC250 Cast Iron Oil-Free Slide Plates, 20mm Thick, Configurable W/L/Holes
MWF/MWFT series FC250 cast iron oil-free slide plates, 20mm thick. Configurable W 28-200mm x L 75-350mm, 2 or 4 bolt holes. Compatible with Misumi MWF/MWFT.
Description
Product Overview
MWF and MWFT series oil-free slide plates made from FC250 cast iron with embedded special solid lubricant. 20mm fixed thickness with configurable width, length, and bolt hole pattern. Ideal for press die guide components and linear motion applications.
Material Specifications
| Base Material | FC250 Cast Iron |
| Lubricant | Special Solid Lubricant (embedded) |
| Hardness | <241 HB |
| Tensile Strength | 250 N/mm² |
| Max Load | 8 N/mm² |
| Max Sliding Speed | 15 m/min |
| Limit PV | 50 N/mm²×m/min |
| Specific Gravity | 7.1~7.3 |
Configurable Dimensions
| Thickness T | 20mm (fixed) |
| Width W (mm) | 28, 38, 48, 58, 75, 100, 125, 150, 200 |
| Length L (mm) | 75, 100, 125, 150, 200, 250, 300, 350 |
| Bolt Holes | 2 holes (W=28~75), 4 holes (W=100~200) |
Note: MWF = 2 bolt holes (W 28~75), MWFT = 4 bolt holes (W 100~150/200). For W=28 or 38, slide direction is the longer direction (L) only. Initial break-in greasing recommended.
Applications
- Press die guide components
- Stamping die oil-free slide plates
- Automated machinery linear guides
- Reciprocating motion applications
- Maintenance-free environments
Need a different size or type? MWF/MWFT is one of our standard offerings. We custom manufacture many more types of wear plates. ISO 9001 Certified | No Minimum Order. Contact us with your requirements.
