Precision Differentials & Differential Gears – Hollow & Solid Shaft | Anti-Backlash
GUNRI manufactures precision differential gear assemblies for applications requiring variable speed distribution between two output shafts. Hollow shaft, solid shaft, and anti-backlash types. Stainless steel construction. Custom end gears and configurations.
Description
What Are Differentials?
A differential gear mechanism distributes input torque between two output shafts, allowing them to rotate at different speeds while receiving power from a single input. Standard differentials consist of a pinion (bevel) gear on the input shaft that drives a carrier (ring) gear, which houses two planet (star) bevel gears that engage with two output-side end gears.
Types of Differentials We Offer

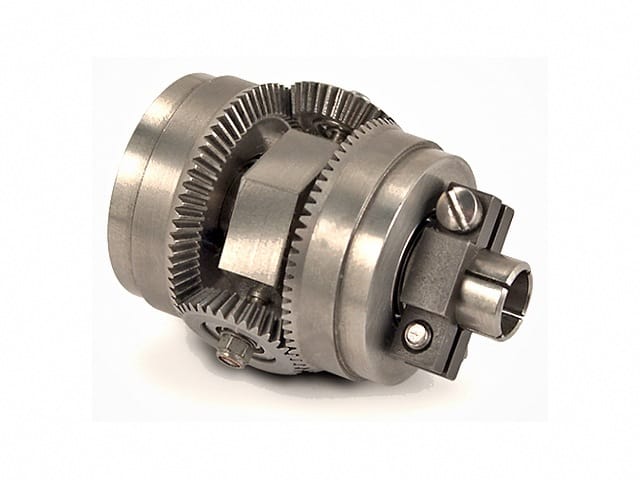

Hollow Shaft Differentials — Output shafts are hollow tubes allowing through-passage of wires, cables, or other components. Compact design for space-constrained applications.

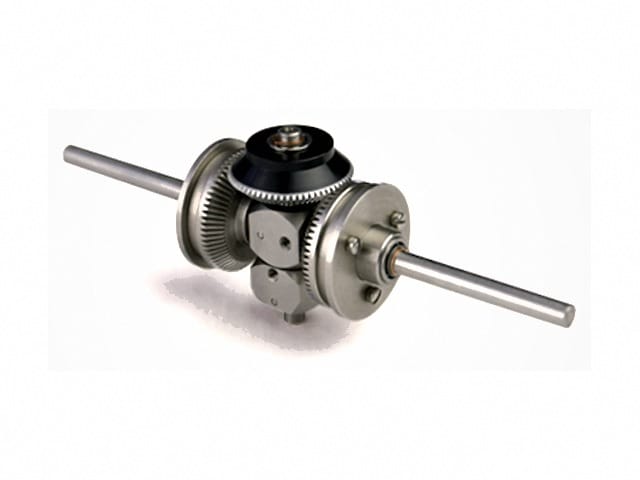

Solid Shaft Differentials — Standard solid output shafts for high-torque transmission. Maximum strength and reliability for demanding applications.

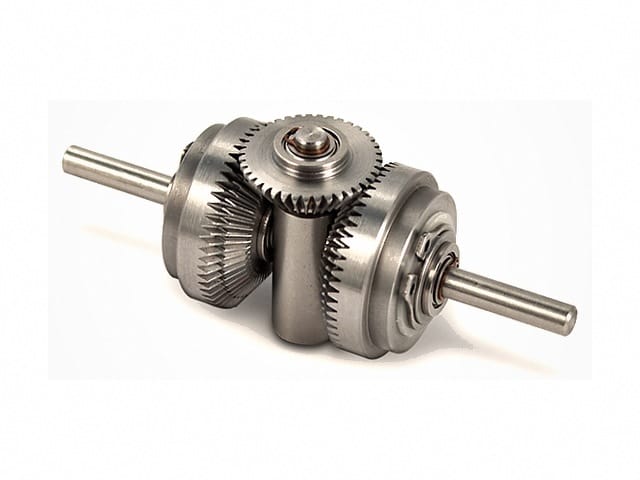

Anti-Backlash Differentials — Patented zero-backlash design ensures precise positioning with no lost motion between end gears. Stainless steel gears and ball bearings. Breakaway torque from 0.15 oz-in. Essential for precision instrumentation and servo systems.
Differential End Gears
Differential end gears are available in plain bore and clamp-type hub styles. Standard end gears can be ordered separately and assembled to the differential at no extra charge. Custom end gears are available for special ratio or mounting requirements.
Specifications
Materials: Stainless steel gears and ball bearings (anti-backlash type)
Breakaway Torque: As low as 0.15 oz-in (anti-backlash models)
Speed Rating: Up to 1000 RPM standard
Pitch: 72 DP (standard), other pitches available
Load Rating: 50 oz-in to custom specifications
Applications
Robotics & Automation • Precision Instrumentation • Medical Devices • Aerospace Control Systems • Machine Tool Indexing • Web Tension Control • Print Registration • Encoder/Resolver Applications
Why Choose GUNRI for Differentials?
• Precision-machined stainless steel differential assemblies
• Anti-backlash zero-backlash technology for critical positioning
• Standard and custom end gears for application-specific ratios
• Engineering support for integration into your drive system
• Compact, ready-to-install assemblies with preloaded ball bearings
